Rear Seat Recliner Inner Finish Cover Replacement Seats Rear

Rear Seat Recliner Inner Finish Cover Replacement

Callout

Component Name

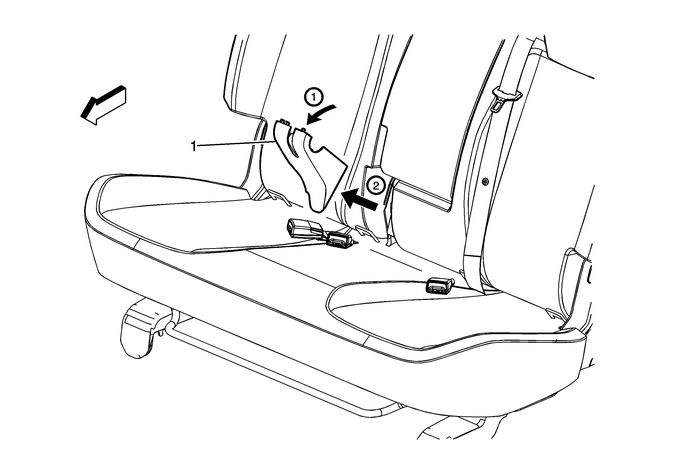

1	Rear Seat Recliner Inner Finish Cover ProcedureTilt and pull forward at the top of the finish cover torelease the clip retainer.Then gently slide the cover forward and up to remove it fromthe seat cushions.

Rear Seat Outer Recliner Rear Finish Cover Replacement Seats Rear

Rear Seat Outer Recliner Rear Finish Cover ReplacementCalloutComponent NamePreliminary ProcedureRemove the rear seat recliner outer finish cover. Refer toRear Seat Recliner Outer Finish Cover Replacem ...

Rear Seat Recliner Outer Finish Cover Replacement Seats Rear

Rear Seat Recliner Outer Finish Cover ReplacementCalloutComponent Name1Rear Seat Recliner Outer Finish Cover Fastener2Rear Seat Recliner Outer Finish CoverProcedureSlide cover forward and then outboar ...
