Rear Bumper Fascia Bumper Guard Pad Replacement (Terrain) Bumpers Rear Bumper

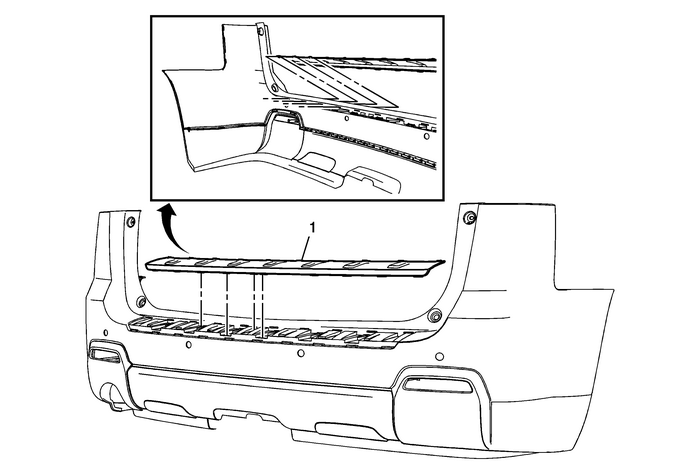

Rear Bumper Fascia Bumper Guard Pad Replacement

Callout

Component Name

Preliminary Procedure

Remove the rear fascia. Refer toRear Bumper Fascia Replacement.

1

Rear Bumper Fascia Bumper Guard Pad

Procedure

Depress the locking tabs to release the bumper guard pad fromthe rear fascia.
