Reaction Carrier Cleaning and Inspection Automatic Transmission Unit

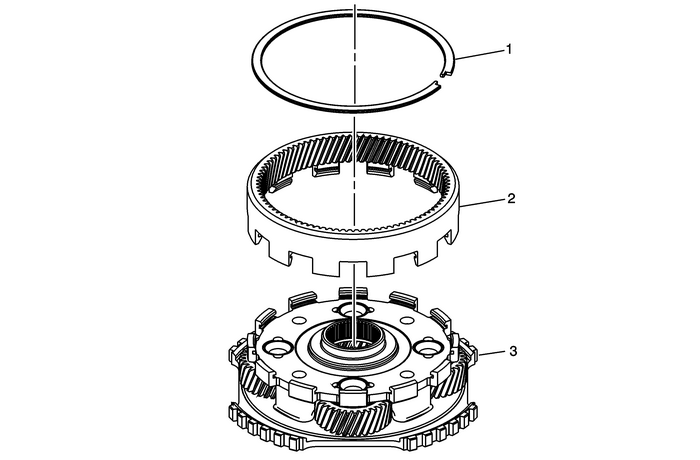

Reaction Carrier Cleaning and Inspection

Callout

Component Name

Preliminary Procedures

Clean and Inspect the carrier as an assembly. If wear ordamage is found disassemble to replace the affectedcomponent.

1

Input Internal Gear Retaining Ring

2

Input Internal Gear

3

Reaction Carrier Assembly
