Radio Front Center Speaker Replacement Entertainment Audio

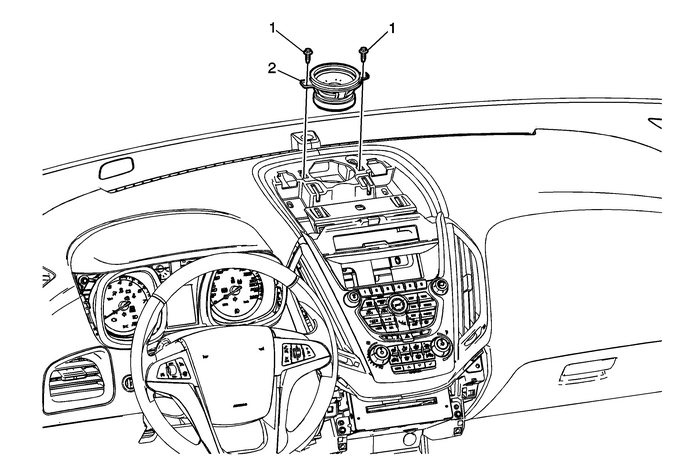

Radio Front Center Speaker Replacement

Callout

Component Name

Preliminary Procedure

Remove the instrument panel center compartment. Refer toInstrument Panel Center Compartment Replacementor the instrument panelupper center trim panel. Refer toInstrument Panel Upper Center Trim Panel Replacement.

1

Radio Front Center Speaker Screw (Qty:-2)

Caution:Refer toFastener Caution.

Tighten

2.5-Y(22-lb-in)

2

Radio Front Center Speaker Assembly

Procedure

Disconnect the electrical connector.
