Radio Antenna Cable Extension Cable Replacement Entertainment

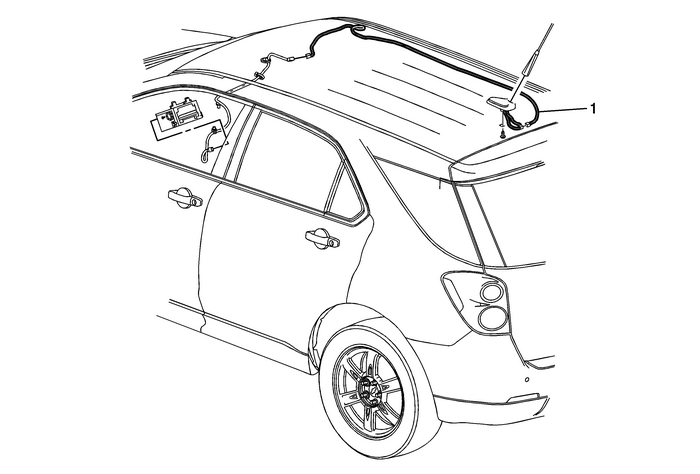

Radio Antenna Cable Extension Cable Replacement

Callout

Component Name

Preliminary Procedure

Lower the headlining trim panel where needed. Refer toHeadlining Trim Panel Replacement.

Radio Antenna Cable Extension Cable

ProcedureDisconnect the electrical connectors at each end of theantenna.If the antenna cable is taped into the wiring harness thencut the ends off the old antenna and route the new antenna as closeto the old one as possible using tie straps to secure the newcable.

Radio Antenna Base Replacement Entertainment

Radio Antenna Base ReplacementCalloutComponent NamePreliminary ProcedureLower the rear of the headlining trim panel. Refer toHeadlining Trim Panel Replacement.1Radio Antenna Base FastenerCaution:Refer ...

Radio Antenna Cable Extension Radio End Cable Replacement Entertainment Audio

Radio Antenna Cable Extension Radio End Cable ReplacementCalloutComponent NamePreliminary ProcedureLower the headlining trim panel where needed. Refer toHeadlining Trim Panel Replacement.1Radio Antenn ...
