Radiator Replacement Engine Cooling Radiator

Radiator Replacement

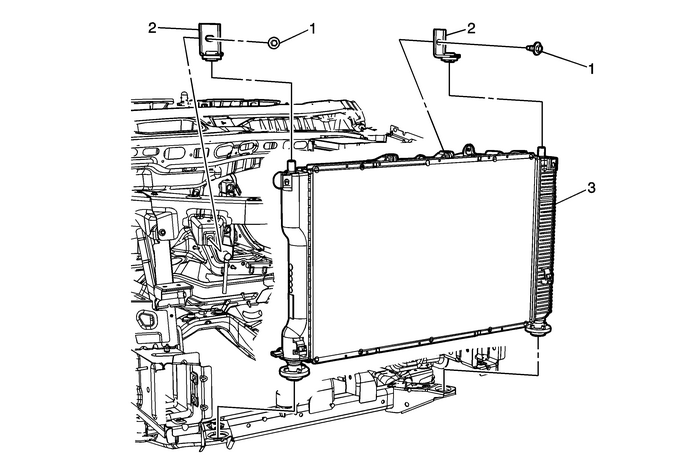

Callout

Component Name

Preliminary ProceduresDrain the cooling system. Refer toCooling System Draining and Filling.Remove radiator hose inlet. Refer toRadiator Inlet Hose Replacement.Remove radiator hose outlet. Refer toRadiator Outlet Hose Replacement.Remove the condenser. Refer toAir Conditioning Condenser Replacement.Remove the engine coolant fan shroud. Refer toEngine Coolant Fan Shroud Replacement.Disconnect transmission oil cooler lines fromradiator.

1

Radiator Upper Radiator Bracket Fastener(Qty:-2)

Caution:Refer toFastener Caution.

Tighten

25-Y(18-lb-ft)

2

Radiator Upper Radiator Bracket (Qty:-2)

3

Radiator

Radiator Drain Cock Replacement Engine Cooling Radiator
Radiator Drain Cock ReplacementCalloutComponent NamePreliminary ProceduresRaise and support the vehicle. Refer toLifting and Jacking the VehiclePlace a drain pan under the right side lower radiatormou ...

Radiator Surge Tank Replacement Engine Cooling Radiator
Radiator Surge Tank ReplacementCalloutComponent NamePreliminary ProceduresDrain the coolant. Refer toCooling System Draining and Filling.Remove the coolant recovery reservoir vent hose. Refer toCoolan ...
