Radiator Air Upper Baffle and Deflector Replacement Engine Cooling Radiator

Radiator Air Upper Baffle and Deflector Replacement

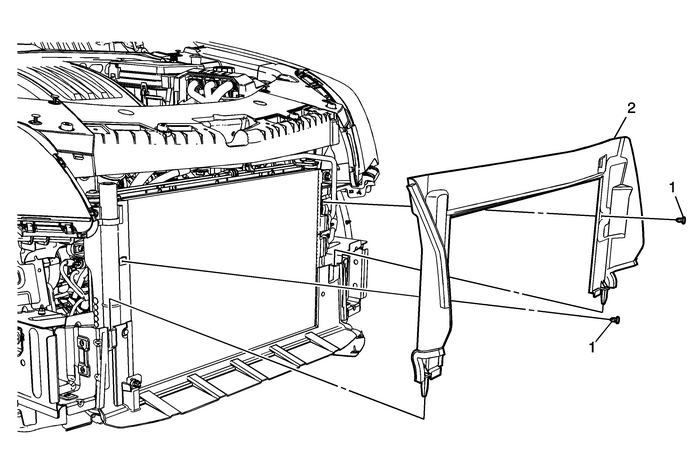

Callout

Component Name

Preliminary Procedures

Remove the front bumper fascia. Refer toFront Bumper Fascia Replacement

1

Radiator Air Upper Baffel And Deflector Retainers(Qty-2)

2

Radiator Air Upper Baffel And Deflector

Radiator Air Lower Baffle and Deflector Replacement Engine Cooling Radiator
Radiator Air Lower Baffle and Deflector ReplacementCalloutComponent NamePreliminary ProceduresRemove the front bumper fascia. Refer toFront Bumper Fascia ReplacementRemove radiator air upper baffel an ...

Radiator Drain Cock Replacement Engine Cooling Radiator
Radiator Drain Cock ReplacementCalloutComponent NamePreliminary ProceduresRaise and support the vehicle. Refer toLifting and Jacking the VehiclePlace a drain pan under the right side lower radiatormou ...
