Chevrolet Equinox Owners Manual: Programming Transmitters to the Vehicle

Only RKE transmitters programmed to the vehicle will work. If a transmitter is lost or stolen, a replacement can be purchased and programmed through your dealer.

The vehicle can be reprogrammed so that lost or stolen transmitters no longer work. Each vehicle can have up to eight transmitters matched to it.

Programming with Recognized Transmitters

A new transmitter can be programmed to the vehicle when there are two recognized transmitters.

To program, the vehicle must be off and all of the transmitters, both currently recognized and new, must be with you.

  1.  Remove the key lock cylinder cap on the driver door handle.

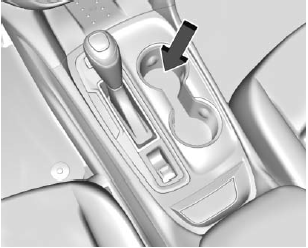

    See Door Locks. Place the two recognized transmitters in the cupholder.

  2.  Insert the vehicle key of the transmitter into the key lock cylinder on the driver door handle and turn the key, counterclockwise, to the unlock position five times within 10 seconds.

    The Driver Information Center (DIC) displays READY FOR REMOTE #2, 3, 4, ETC.

Programming with Recognized Transmitters

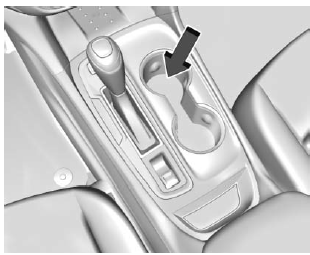

  1. Place the new transmitter into the cupholder.
  2. Press ENGINE START/STOP.

    When the transmitter is learned the DIC display will show that it is ready to program the next transmitter.

  3.  Remove the transmitter from the cupholder and press or on the transmitter.

    To program additional transmitters, repeat Steps 3-5.

    When all additional transmitters are programmed, press and hold ENGINE START/STOP for 12 seconds to exit programming mode.

  4.  Put the key back into the transmitter.

Programming without Recognized Transmitters

If two currently recognized transmitters are not available, follow this procedure to program up to eight transmitters. This feature is not available in Canada. This procedure will take approximately 30 minutes to complete. The vehicle must be off and all of the transmitters you wish to program must be with you.

  1.  Remove the key lock cylinder cap on the driver door handle.

    See Door Locks. Insert the vehicle key of the transmitter into the key lock cylinder on the driver door handle and turn the key, counterclockwise, to the unlock position five times within 10 seconds.

    The Driver Information Center (DIC) displays REMOTE LEARN PENDING, PLEASE WAIT.

  2.  Wait for 10 minutes until the DIC displays PRESS ENGINE START BUTTON TO LEARN and then press ENGINE START/STOP.

    The DIC display will again show REMOTE LEARN PENDING, PLEASE WAIT.

  3.  Repeat Step 2 two additional times. After the third time all previously known transmitters will no longer work with the vehicle. Remaining transmitters can be relearned during the next steps.

    The DIC display should now show READY FOR REMOTE # 1.

Programming without Recognized Transmitters

  1. Place the new transmitter into the cupholder.
  2.  Press ENGINE START/STOP.

    When the transmitter is learned the DIC display will show that it is ready to program the next transmitter.

  3.  Remove the transmitter from the cupholder and press or on the transmitter.

    To program additional transmitters, repeat Steps 4-6.

    When all additional transmitters are programmed, press and hold ENGINE START/STOP for 12 seconds to exit programming mode.

  4.  Put the key back into the transmitter.
Keyless Access Operation
With the Keyless Access system, you can lock and unlock the doors and access the liftgate without removing the RKE transmitter from your pocket, purse, briefcase, etc. The RKE transmitter shoul ...

Starting the Vehicle with a Low Transmitter Battery
When the vehicle is started, if the transmitter battery is weak, the DIC may display NO REMOTE DETECTED or NO REMOTE KEY WAS DETECTED PLACE KEY IN TRANSMITTER POCKET THEN START YOUR VEHICLE. The ...
