Parking Brake Actuator Replacement Parking Brake Lever or Pedal

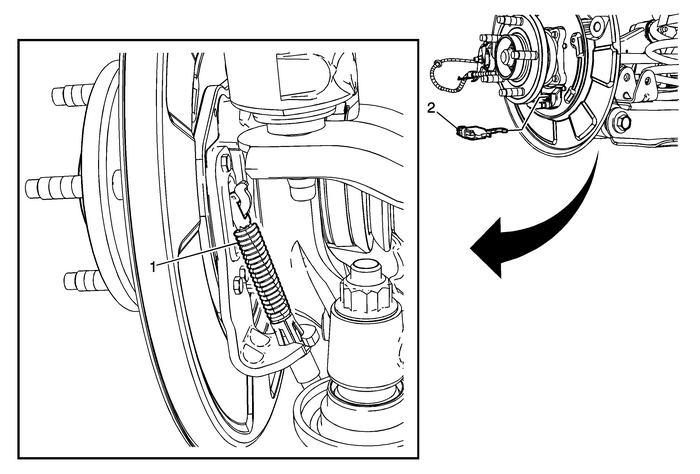

Parking Brake Actuator Replacement

Callout

Component Name

Warning:Refer toBrake Dust Warning.

Preliminary ProceduresRaise and support the vehicle. Refer toLifting and Jacking the Vehicle.Remove the tire and wheel. Refer toTire and Wheel Removal and Installation.Remove the park brake shoes. Refer toParking Brake Shoe Replacement.

Park Brake Cable Eye

Procedure

Disconnect the park brake cable eye from the actuatorlever.

Parking Brake Actuator

Procedure

Adjust the park brake. Refer toParking Brake Adjustment.
