Outside Rearview Mirror Replacement (Terrain) Rearview

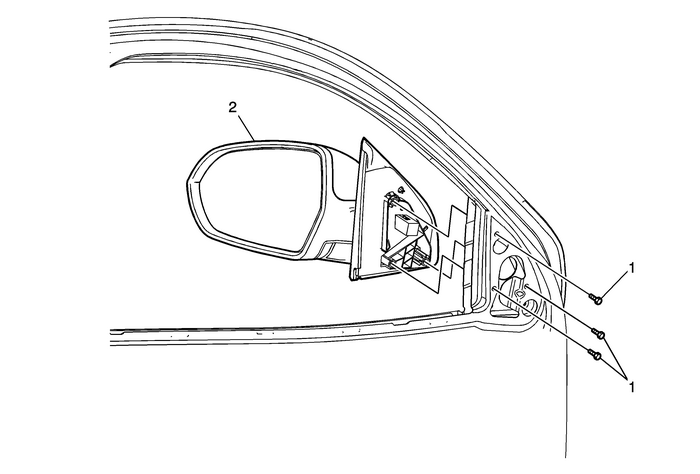

Outside Rearview Mirror Replacement

Callout

Component Name

Preliminary ProceduresPlace the window in the full down position.Remove the front side door garnish molding. Refer toFront Side Door Garnish Molding Replacement.

1

Outside Rearview Mirror Bolt (Qty:-3)

Warning:Refer toGlass and Sheet Metal Handling Warning.

Caution:Refer toFastener Caution.

Procedure

Disconnect the electrical connector.

Tighten

10-Y(89-lb-in).

2

Outside Rearview Mirror

Procedure

Inspect the mirror for proper operation before installing thedoor trim panel.

Outside Rearview Mirror Remote Control Switch Replacement Rearview
Outside Rearview Mirror Remote Control Switch ReplacementCalloutComponent NamePreliminary ProcedureRemove the front side door accessory switch mount plate.Refer toFront Side Door Accessory Switch Moun ...

Outside Rearview Mirror Replacement Rearview
Outside Rearview Mirror ReplacementCalloutComponent NamePreliminary ProceduresPlace the window in the fully down position.Remove front door trim panel. Refer toFront Side Door Trim Panel Replacement.R ...
