Outside Rearview Mirror Glass Replacement Rearview

Outside Rearview Mirror Glass Replacement

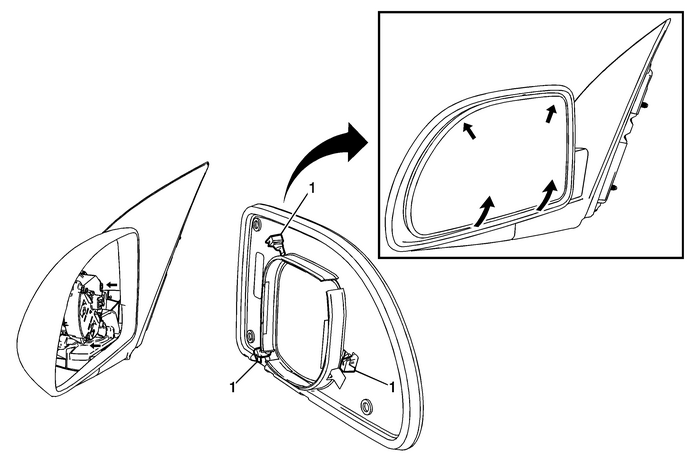

Callout

Component Name

Outside Rearview Mirror Glass

Warning:Refer toGlass and Sheet Metal Handling Warning.

ProceduresPush the top center of the mirror inward, grasp the bottomcenter of mirror pulling rearward until the mirror releases fromthe motor.Disconnect the electrical connectors from the back of themirror, if equipped.When installing, align the retainers on the mirror glass withthe motor retainers.With the palm of your hand push inward until the glass lockin place.Inspect the mirror for proper operation before installing thedoor trim panel.

Outside Rearview Mirror Folding Control Module Replacement Rearview

Outside Rearview Mirror Folding Control Module ReplacementCalloutComponent NamePreliminary ProcedureRemove the front side door trim panel. Refer toFront Side Door Trim Panel Replacement.1Outside Rearv ...

Outside Rearview Mirror Inner Actuator Replacement Rearview

Outside Rearview Mirror Inner Actuator ReplacementCalloutComponent NamePreliminary ProcedureRemove the outside rearview mirror glass. Refer toOutside Rearview Mirror Glass Replacement.1Outside Rearvie ...
