Manual Shift Shaft Seal Replacement Automatic Transmission Unit

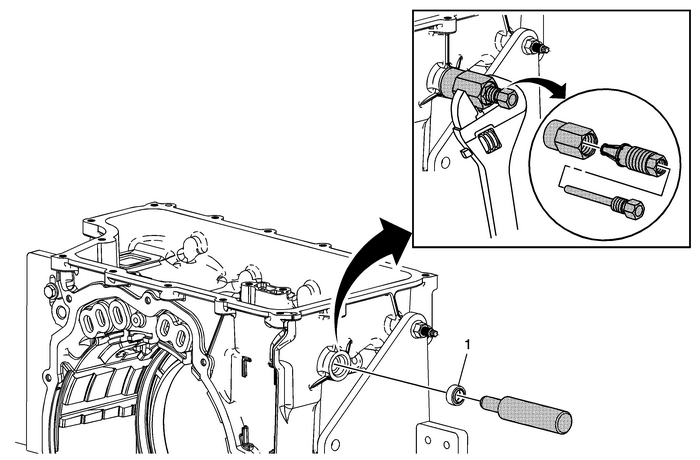

Manual Shift Shaft Seal Replacement

Callout

Component Name

1

Manual Shift Shaft Seal

Special ToolsDT-45201Cooler Line Seal RemoverDT-46626Seal Installer

For equivalent regional tools, refer toSpecial Tools.
