Manual Shift Shaft and Seal Replacement Automatic Transmission Unit

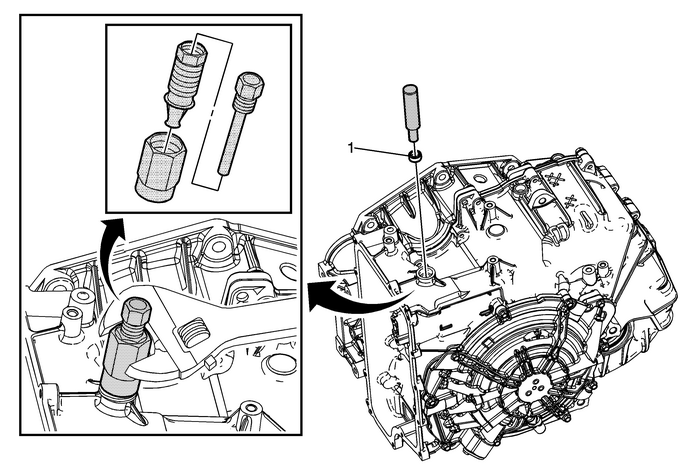

Manual Shift Shaft and Seal Replacement

Callout

Component Name

Preliminary ProceduresRemove the battery tray. Refer toBattery Tray Replacement.Remove the manual shaft and position switch assembly. RefertoManual Shift Detent Lever with Shaft Position Switch Assembly Replacement.

1

Manual Shift Shaft Seal

Tip:

For seal removal useDT-45201Manual Shaft Seal Remover.For seal installation useDT-46626Manual Shift Shaft Seal Installer.Lubricate the manual shaft with automatic transmission fluid(ATF) to prevent damage to the manual shift shaft seal.Special ToolsDT-45201Manual Shaft Seal RemoverDT-46626Manual Shift Shaft Seal Installer
Manual Shift Detent Lever with Shaft Position Switch Assembly Replacement Automatic Transmission Unit
/.Manual Shift Detent Lever with Shaft Position Switch Assembly ReplacementCalloutComponent NamePreliminary ProceduresRemove the transmission range selector lever. Refer toAutomatic Transmission Range ...

Manual Shift Shaft Seal Installation Automatic Transmission Unit
Manual Shift Shaft Seal InstallationCalloutComponent Name1Manual Shift Shaft SealSpecial ToolDT-49101Seal InstallerFor equivalent regional tools, refer toSpecial Tools. ...
