Chevrolet Equinox Service Manual: Manual Shift Detent Lever with Shaft Position Switch Assembly and Park Pawl Actuator Removal Automatic Transmission Unit

Chevrolet Equinox Service Manual / Powertrain / Transmission/Transaxle / Manual Shift Detent Lever with Shaft Position Switch Assembly and Park Pawl Actuator Removal Automatic Transmission Unit

Table 1: Manual Shaft Detent (w/Shift Position Switch) Lever Assembly Removal
Table 2: Park Pawl Actuator Guide Removal

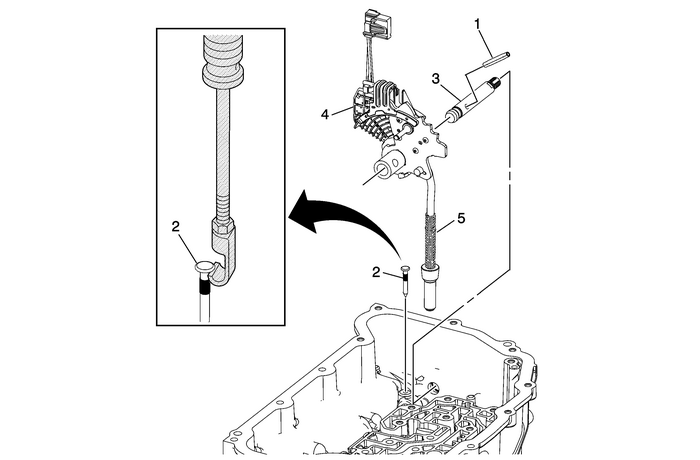

Manual Shaft Detent (w/Shift Position Switch) Lever Assembly Removal

Manual Shift Detent Lever with Shaft Position Switch Assembly and Park Pawl Actuator Removal Automatic Transmission Unit

Manual Shaft Detent (w/Shift Position Switch) Lever Assembly Removal

Callout

Component Name

1

Manual Shaft Detent Lever Hub Pin

Note:Use side cutter to remove the pin-(1) and discard.

2

Manual Shift Shaft Pin

Note:Discard the pin. It is not reusable.

Special ToolsDT-23129 Universal Seal RemoverGE-6125-1B Slide Hammer

For equivalent regional tools, refer toSpecial Tools.

3

Manual Shaft

4

Manual Shaft Detent (w/Shift Position Switch) Lever Assembly

5

Park Pawl Actuator Assembly

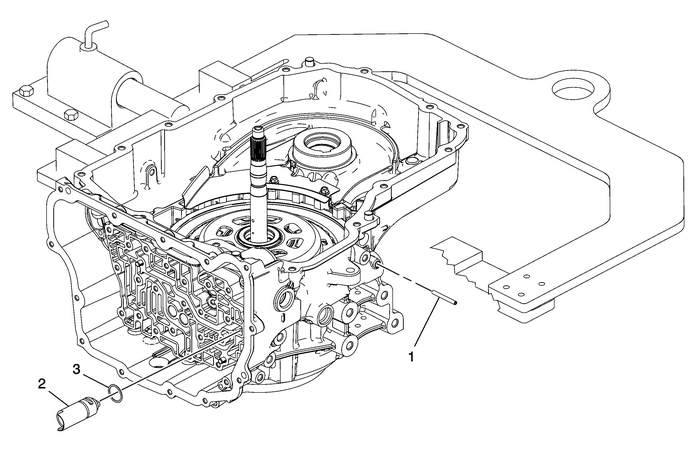

Park Pawl Actuator Guide Removal

Manual Shift Detent Lever with Shaft Position Switch Assembly and Park Pawl Actuator Removal Automatic Transmission Unit

Park Pawl Actuator Guide Removal

Callout

Component Name

1

Park Pawl Actuator Guide Pin

Note:Use side cutter to remove the pin-(1) and discard.

2

Park Pawl Actuator Guide Assembly

3

Park Pawl Actuator Guide Assembly Seal

Note:Discard the seal. It is not reusable.
