Liftgate Lower Trim Finish Panel Replacement Trim Panels/Welts

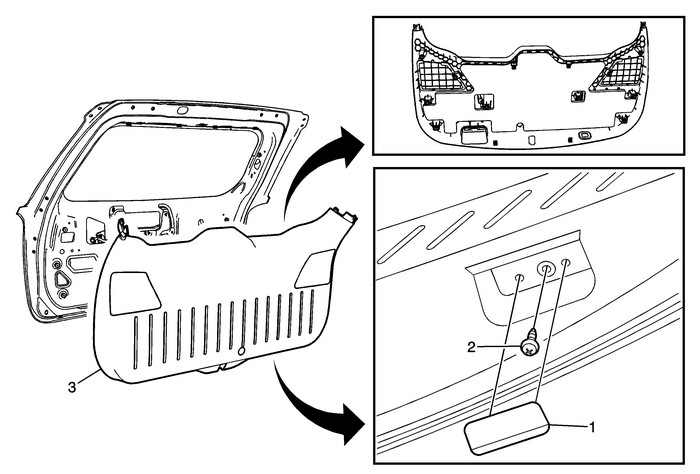

Liftgate Lower Trim Finish Panel Replacement

Callout

Component Name

Preliminary Procedure

Remove the liftgate upper trim finish panel. Refer toLiftgate Upper Trim Finish Panel Replacement.

1

Liftgate Trim Finish Panel Bolt Cap

2

Liftgate Lower Trim Finish Panel Fastener

Caution:Refer toFastener Caution.

Tighten:

2-Y-(18-lb-in)

3

Liftgate Lower Trim Finish Panel Assembly

ProcedureUse a trim panel removal tool to aid in the removal of thetrim panel from the liftgate assembly.Start at the top clip on the right-hand side of liftgatelower trim finish panel.Disconnect the electrical connector, if equipped.
