Intake Air Duct Replacement Engine Control

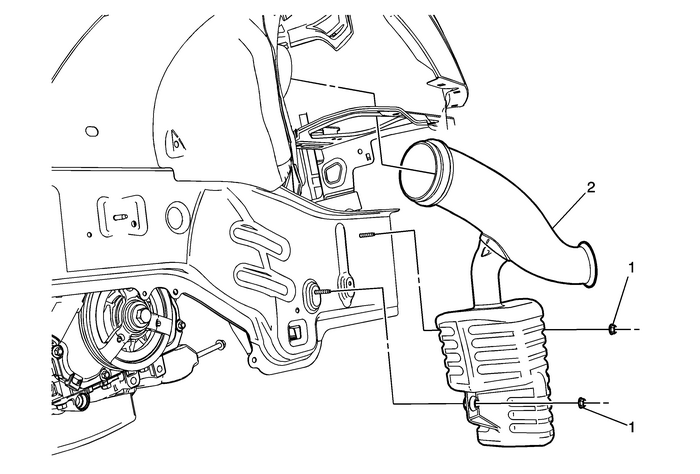

Air Cleaner Inlet Duct and Resonator Replacement

Callout

Component Name

Preliminary Procedure

Remove the front wheelhouse panel. Refer toFront Wheelhouse Liner Replacement.

Front Intake Air Duct Fastener (Qty: 2)

Caution:Refer toFastener Caution.

Tighten

10-Y(89-lb-in)

Front Intake Air Duct

Procedure

Disconnect the electrical connector.
