Instrument Panel Side Trim Panel Replacement (Terrain) Consoles Center Console

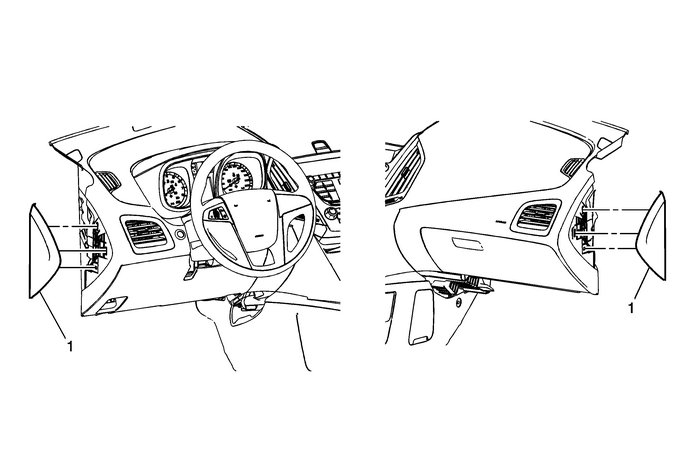

Instrument Panel Side Trim Panel Replacement

Callout

Component Name

1	Instrument Panel Side Trim Panels (Left or Right) Procedure Use a flat bladed plastic trim tool in order to release theretainer clips securing the side trim panels to the instrumentpanel assembly.

Instrument Panel Outer Air Outlet Replacement (Terrain) Dashboard Assembly

Instrument Panel Outer Air Outlet ReplacementCalloutComponent Name1Instrument Panel Outer Air Outlet (Left)ProcedureUse a flat bladed plastic trim tool in order to release theinstrument panel outer ai ...

Instrument Panel Upper Center Trim Panel Replacement (Terrain) Consoles Center Console

Instrument Panel Upper Center Trim Panel ReplacementCalloutComponent Name1Instrument Panel Upper Center Trim Panel AssemblyProcedureApply firm inward pressure at the top center of the radiocontrol ass ...
