Instrument Panel Center Compartment Replacement (Terrain) Consoles Center Console

Instrument Panel Center Compartment Replacement

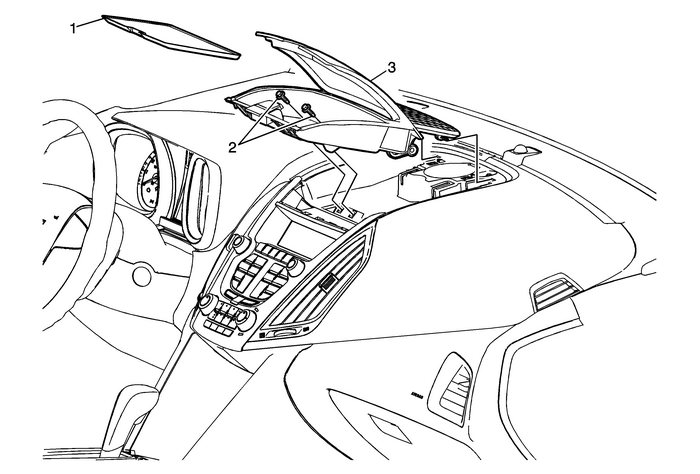

Callout

Component Name

1

Instrument Panel Center Compartment Liner

2

Instrument Panel Center Compartment Fasteners(Qty:-2)

Caution:Refer toFastener Caution.

Tighten

2.5-Y(22-lb-in)

3

Instrument Panel Center Compartment Assembly

Instrument Panel Center Compartment Bracket Replacement (Terrain) Consoles Center Console
Instrument Panel Center Compartment Bracket ReplacementCalloutComponent NamePreliminary ProceduresRemove the instrument panel upper center trim panel. Refer toInstrument Panel Upper Center Trim Panel ...

Instrument Panel Cluster Trim Pad Replacement Consoles Center Console
Instrument Panel Cluster Trim Pad ReplacementCalloutComponent Name1Instrument Panel Cluster Trim PadProceduresUse a flat bladed plastic trim tool in order to release theretainer clips securing the ins ...
