Input Shaft Seal Replacement - Right Automatic Transmission Unit

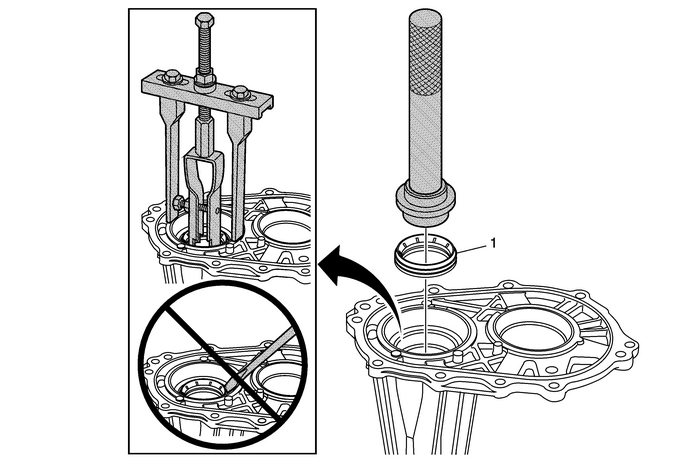

Input Shaft Seal Replacement - Right

Callout

Component Name

Transfer Case Input Shaft Seal – Right

Caution:Do not use a screwdriver or punch to remove the seal. Using ascrewdriver or punch to remove the seal may damage the aluminumhousing sealing surface.

Special ToolsDT-48074 Input and Output Shaft Seal InstallerJ-8092 Driver HandleDT-26941/KM-J-26941 Bushing and Bearing Remover – 3–4-inDT-45124 Removal Bridge

For equivalent regional tools, refer toSpecial Tools.

Input Shaft Seal Replacement - Left (RPO MHC) Automatic Transmission Unit

Input Shaft Seal Replacement - LeftCalloutComponent Name1Transfer Case Input Shaft Seal – LeftCaution:Do not use a screwdriver or punch to remove or install theseal. Using a screwdriver or punch to ...

Input Shaft Support Replacement (Gen 2) Automatic Transmission Unit

Input Shaft Support ReplacementCalloutComponent Name13-5 Reverse and 4-5-6 Clutch Fluid Seals-(Qty:-3)Note:Discard the fluid seals. They are not reusable.Refer to3-5-Reverse and 4-5-6 Clutch Fluid Sea ...
