Ignition and Start Switch Replacement Ignition System

Ignition and Start Switch Replacement

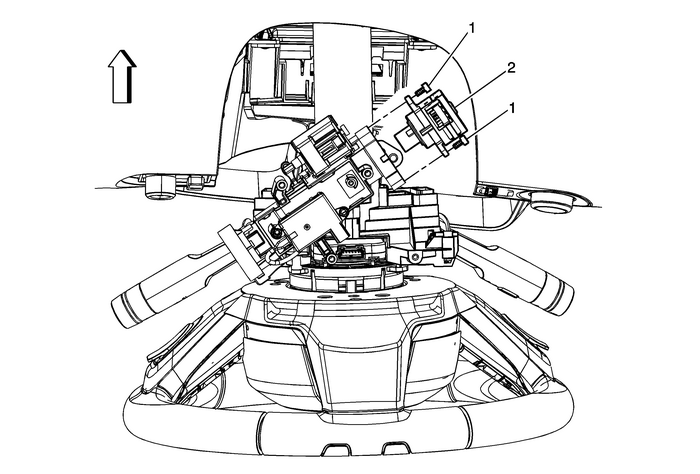

Callout

Component Name

Preliminary ProcedureDisconnect the battery negative cable. Refer toBattery Negative Cable Disconnection and Connection.Disable the supplemental inflatable restraint (SIR) system.Refer toSIR Disabling and Enabling.Remove the steering column shroud. Refer toSteering Column Shroud Replacement.

1

Ignition and Start Switch Bolt (Qty: 2)

Caution:Refer toFastener Caution.

Tighten

2-Y(18-lb-in)

2

Ignition and Start Switch

Procedure

Disconnect the ignition switch electrical connector.
