Horn Replacement (Left Hand) Horn

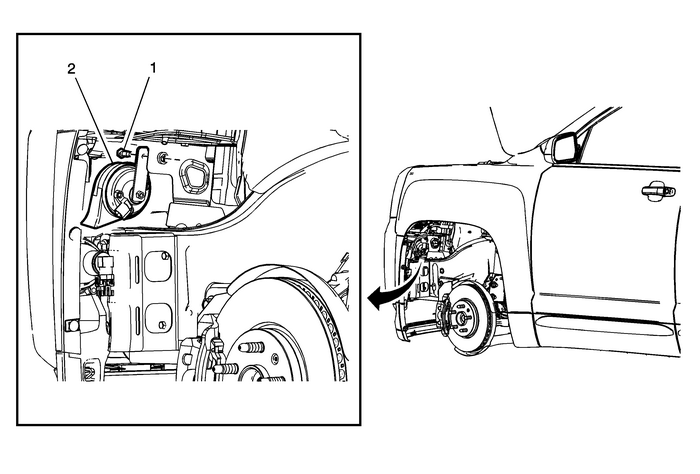

Horn Replacement

Callout

Component Name

Preliminary Procedure

Remove the left front wheelhouse liner. Refer toFront Wheelhouse Liner Replacement.

Remove the windshield washer solvent container. Refer toWindshield Washer Solvent Container Replacement

1

Horn Bolt

Caution:Refer toFastener Caution.

Tighten

10-Y (89-lb-in)

2

Horn

Procedure

Disconnect the electrical connector.
