Chevrolet Equinox Service Manual: Fuel Rail and Injectors Installation Fuel System Fuel Rail

Chevrolet Equinox Service Manual / Powertrain / Engine / Fuel Rail and Injectors Installation Fuel System Fuel Rail

Special Tools

EN-47909Injector Bore and Sleeve Cleaning Kit

For equivalent regional tools, refer toSpecial Tools.

Fuel Rail and Injectors Installation Fuel System Fuel Rail

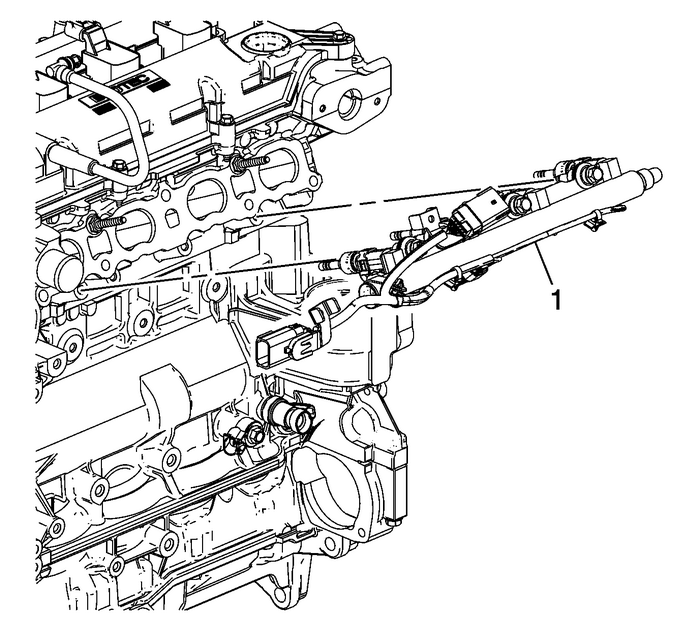

Clean the fuel injector bore in the cylinder head using theEN-47909kit.Install the fuel rail-(1) with injectors into thecylinder head evenly.Hand tighten the 2-outer fuel rail bolts to seatthe injector into the injector bores.

Caution:Refer toFastener Caution.

Start and hand tighten the remaining fuel rail bolts. Tightenthe bolts in sequence to final torque using the followingprocedure:Tighten first pass in sequence to25-Y(18-lb-ft).Tighten final pass in sequence to25-Y(18-lb-ft).Connect the electrical harness to the fuel rail harnessconnections.

Fuel Rail and Injectors Installation Fuel System Fuel Rail

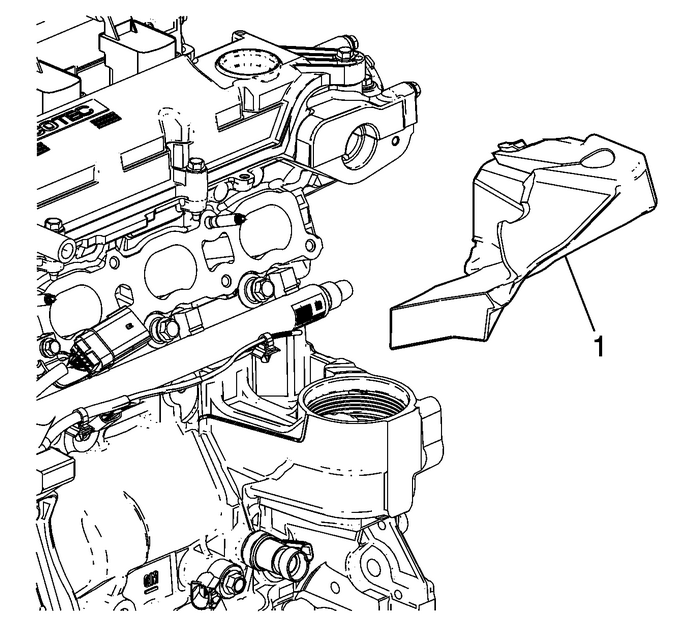

Install the fuel injection fuel rail noiseshield-(1).
