Fuel Pump Power Control Module Replacement Engine Control

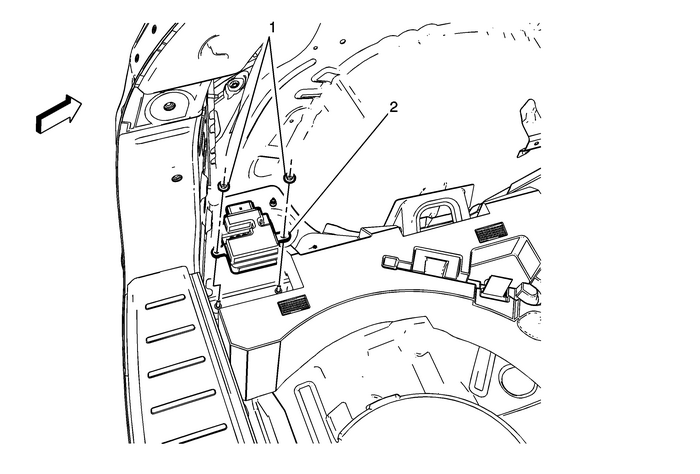

Fuel Pump Power Control Module Replacement

Callout

Component Name

Fuel Pump Power Control Module Fasteners (Qty:-2)

Caution:Refer toFastener Caution

Tighten

8-Y-(71-lb-in)

Fuel Pump Power Control Module

ProcedureOpen the spare tire compartment lid.Disconnect the electrical connector.If replacing, reprogram the module. Refer toControl Module References
