Fuel Line Replacement - Chassis Engine Control

Fuel Line Replacement - Chassis

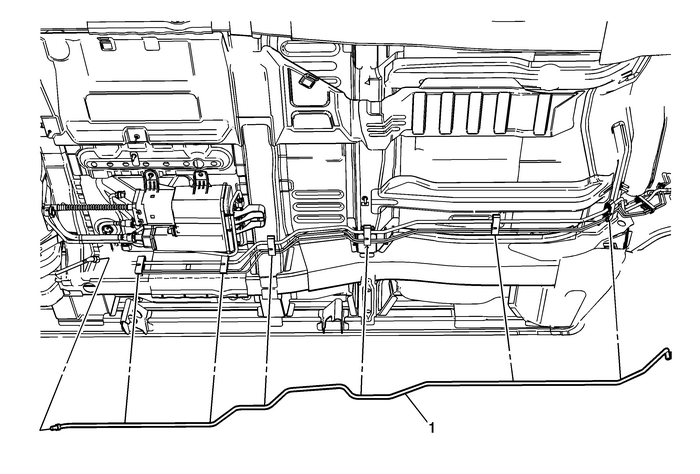

Callout

Component Name

Preliminary ProceduresRelieve the fuel system pressure. Refer toFuel Pressure Relief.Remove the intake manifold cover. Refer toIntake Manifold Cover Replacement.Raise and support the vehicle. Refer toLifting and Jacking the Vehicle.Disconnect the quick connectors. Refer toMetal Collar Quick Connect Fitting ServiceandPlastic Collar Quick Connect Fitting Service.

Fuel Feed Line

Procedure

Disengage the line from the plastic retainers.

Fuel Injector and Fuel Rail Replacement Engine Control

Fuel Injector and Fuel Rail ReplacementCalloutComponent NamePreliminary ProceduresRelieve the fuel system pressure. Refer toFuel Pressure Relief.Remove the intake manifold. Refer toIntake Manifold Rep ...

Fuel Pipe Shield Replacement Engine Control

Fuel Pipe Shield ReplacementCalloutComponent NamePreliminary ProcedureRemove the intake manifold cover. Refer toIntake Manifold Cover Replacement.1BoltCaution:Refer toFastener Caution.Tighten10-Y (89- ...
