Chevrolet Equinox Owners Manual: Front Tow Eye

Front Tow Eye

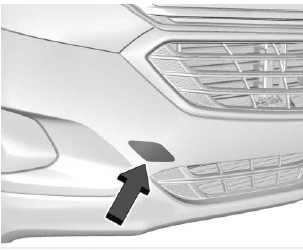

Carefully open the cover by using the small notch that conceals the front tow eye socket.

Front Tow Eye

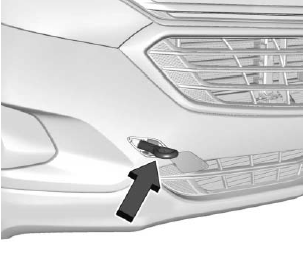

Install the tow eye into the socket by turning it clockwise until it stops in a horizontal position.

When the tow eye is removed, reinstall the cover with the notch in the original position.
