Front Side Door Weatherstrip Replacement Weatherstripping

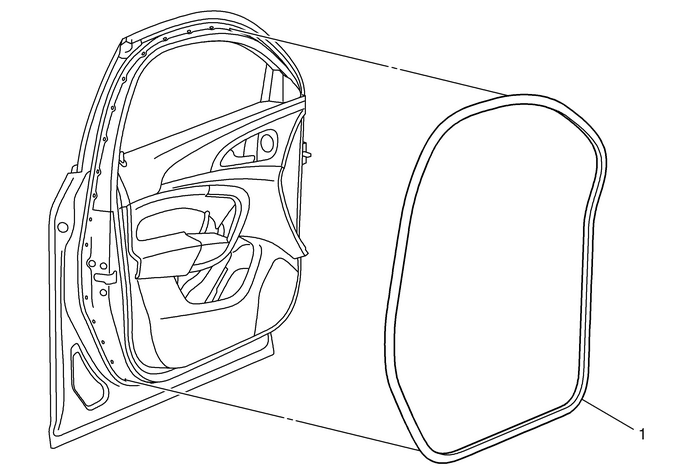

Front Side Door Weatherstrip Replacement

Callout

Component Name

Preliminary Procedures

Remove the front side door check link. Refer toRear Side Door Check Link Replacement.

1

Front Side Door Weatherstrip

Procedure

Use a suitable tool in the removal of the front side doorweatherstrip retainers.
