Front Lower Grille Replacement Front Grille

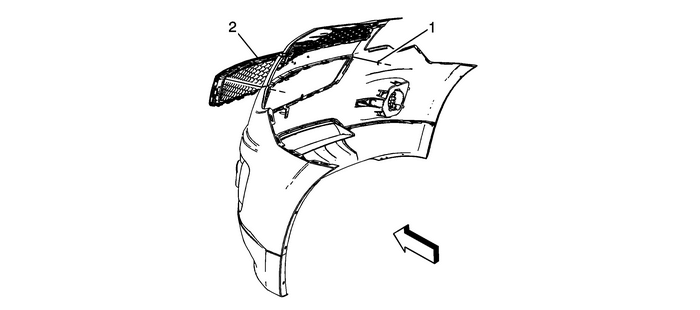

Front Lower Grille Replacement

Callout

Component Name

Preliminary Procedure

Remove the front bumper fascia. Refer toFront Bumper Fascia Replacement.

1

Push On Nut (Qty:-2)

Tip:Remove and replace the two push on nuts in order to removethe radiator lower grille assembly.

2

Radiator Lower Grille Assembly

Tip:Release the eight lower grill tabs from the front upperbumper fascia.

Front Grille Opening Bezel Replacement (Terrain) Front Grille
Front Grille Opening Bezel ReplacementCalloutComponent NamePreliminary ProcedureRemove the radiator upper grille assembly. Refer toFront Upper Grille Replacement.1Radiator Grille Opening BezelProcedur ...

Front Lower Grille Replacement (Terrain) Front Grille
Front Lower Grille ReplacementCalloutComponent NamePreliminary ProcedureRemove the front fog lamp bezel. Refer toFront Fog Lamp Bezel Replacement.1Radiator Lower GrilleProcedureUsing a small flat-blad ...
