Front Fog Lamp Bezel Replacement Lighting Exterior Lighting Fog Lamp

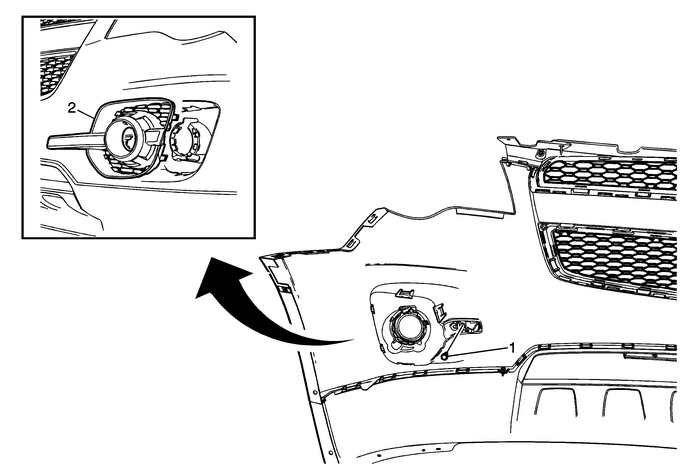

Front Fog Lamp Bezel Replacement

Callout

Component Name

Preliminary Procedure

Remove the front bumper fascia assembly. Refer toFront Bumper Fascia Replacement.

1

Front Fog Lamp Bezel Assembly Screw

Caution:Refer toFastener Caution.

Tighten

2.5-Y(22-lb-in)

2

Front Fog Lamp Bezel Assembly

Procedure

Release the six outer grille assembly tabs from the frontbumper upper fascia opening and push outward on the front fog lampbezel to remove.

Bulb Replacement Lighting Bulbs
For the proper type of replacement bulbs, seeReplacement Bulbs.For any bulb changing procedure not listed in this section,contact your dealer. ...

Front Fog Lamp Bezel Replacement (Terrain) Lighting Exterior Lighting Fog Lamp
Front Fog Lamp Bezel ReplacementCalloutComponent NamePreliminary ProcedureRemove the front wheelhouse liner. Refer toFront Wheelhouse Liner Replacement.1Front Fog Lamp BezelProcedureRelease the tabs o ...
