Front Floor Console Armrest Replacement Consoles Center Console

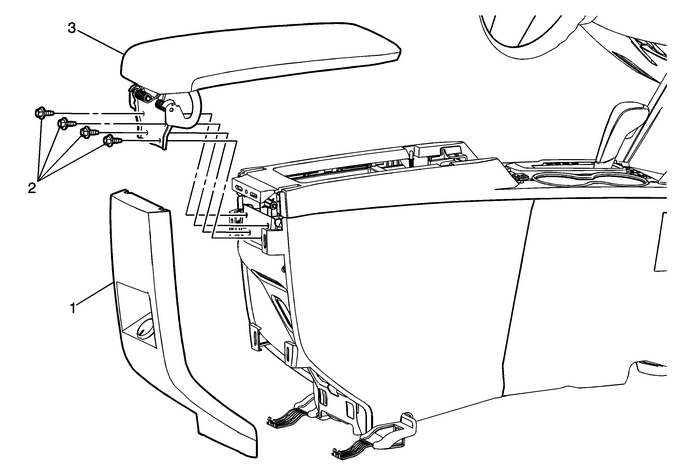

Front Floor Console Armrest Replacement

Callout

Component Name

1

Front Floor Console Rear Cover

Refer toFront Floor Console Rear Cover Replacement.

2

Front Floor Console Armrest Fasteners(Qty:-4)

Caution:Refer toFastener Caution.

Tighten:

2.5-Y(22-lb-in)

3

Front Floor Console Armrest Assembly
