Front Bumper Fascia Replacement (Terrain) Bumpers Front Bumper

Front Bumper Fascia Replacement

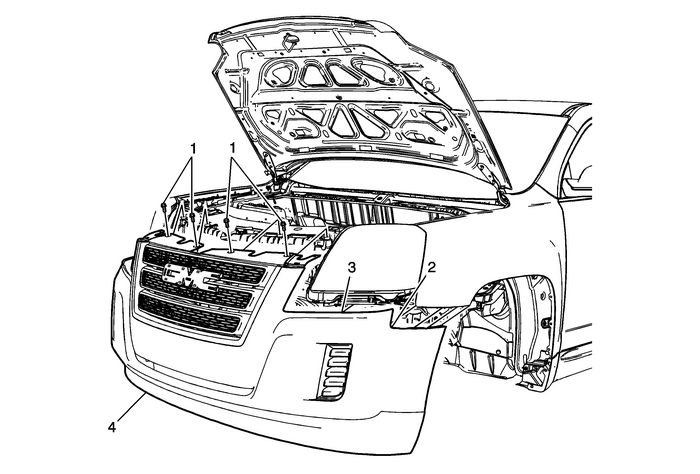

Callout

Component Name

Preliminary ProceduresRemove the front bumper fascia opening cover. Refer toFront Bumper Fascia Opening Cover Replacement.Remove the front wheelhouse liner. Refer toFront Wheelhouse Liner Replacement.

1

Front Bumper Fascia Screw (Qty:-4)

Caution:Refer toFastener Caution.

Tighten

6-Y(53-lb-in)

2

Front Bumper Fascia Retainer

Procedure

Carefully push a small nylon wedge between the fascia and thefender. Insert a small flat-bladed tool into the fasciaslot and depress the tabs one at a time and pull on the fascia atthe same time to gradually remove the fascia from thefender.

3

Front Bumper Fascia Headlamp Bracket

Procedure

Carefully push a small nylon wedge between the fascia and theheadlamp bracket. Insert a small flat-bladed tool intothe fascia slot and depress the tabs one at a time and pull on thefascia at the same time to gradually remove the fascia from theheadlamp bracket.

4

Front Bumper Fascia

Procedure

Disconnect the electrical connectors.
