Evaporative Emission Line Replacement - Chassis to Canister Engine Control

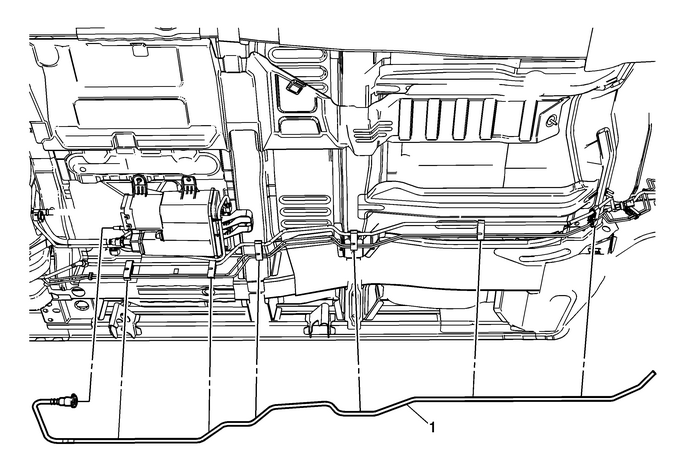

Evaporative Emission Line Replacement - Chassis to Canister

Callout

Component Name

Preliminary ProcedureRaise and support the vehicle. Refer toLifting and Jacking the Vehicle.Disconnect the quick connectors. Refer toPlastic Collar Quick Connect Fitting Service.

1

Evaporative Emission Line

Procedure

Disengage the line from the plastic retainers.
