Special Tools

EN 45000Seal Remover

For equivalent regional tools, refer toSpecial Tools

Engine Front Cover Disassemble Engine Block Cylinder Block Cyl Block Front Cover

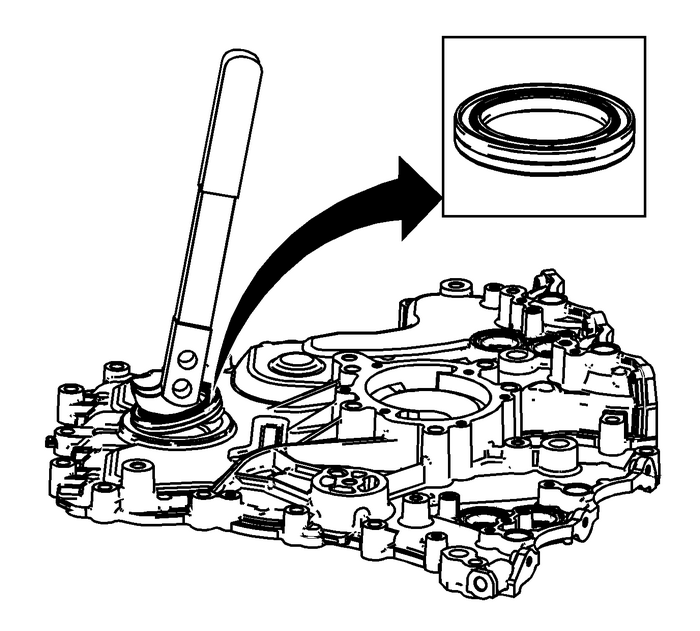

Remove the crankshaft front oil seal from the engine frontcover using theEN 45000remover.

Engine Front Cover Disassemble Engine Block Cylinder Block Cyl Block Front Cover

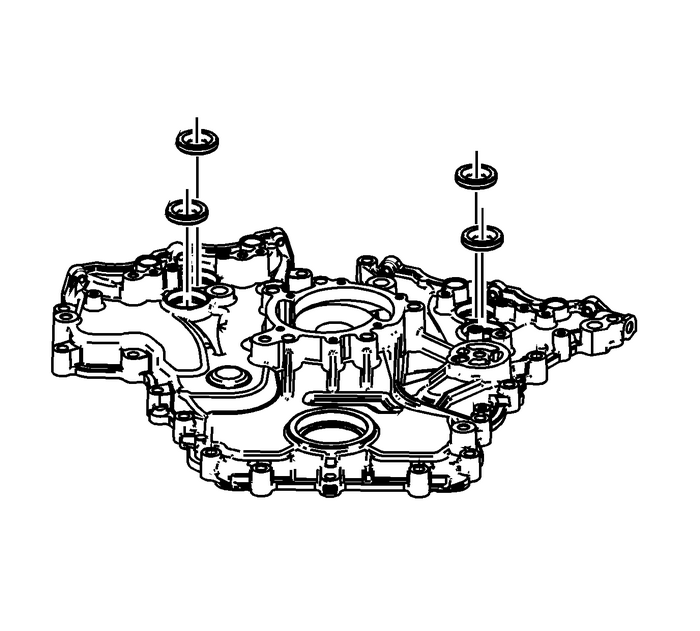

Remove the camshaft position actuator valve oil seals fromthe engine front cover.

Engine Front Cover Disassemble Engine Block Cylinder Block Cyl Block Front Cover

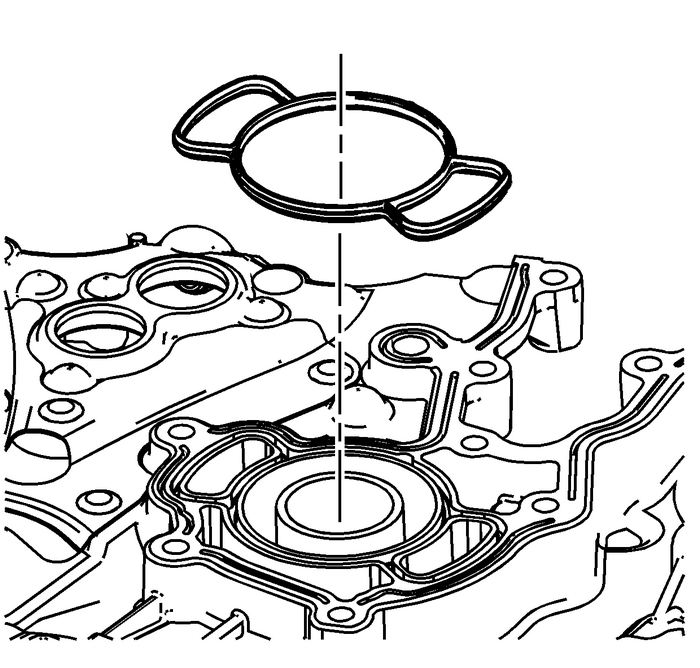

Remove the water pump seal from the engine frontcover.Discard the water pump seal.
