Engine Coolant Fan Resistor Replacement

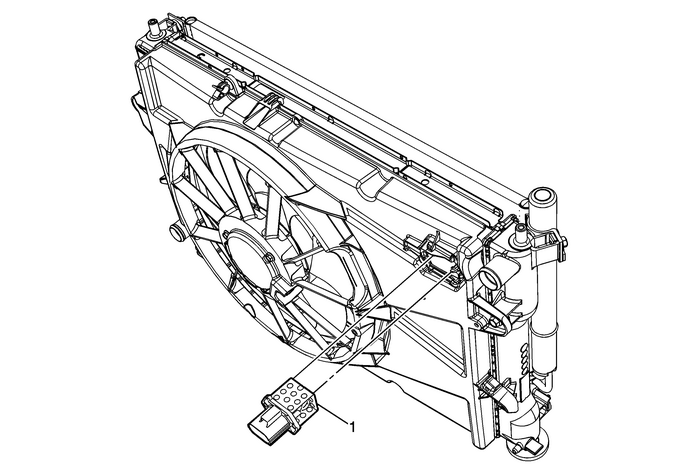

Callout

Component Name

Preliminary Procedures

Disconnect the engine coolant fan resistor electricalconnector.

Engine Coolant Fan Resistor

Procedure

Depress tab on the engine coolant fan shroud to release theengine coolant fan resister from the engine coolant fanshroud.
