Duct Air Temperature Sensor Replacement - Upper Engine Control Engine Control Sensors Intake Air Temp Sensor

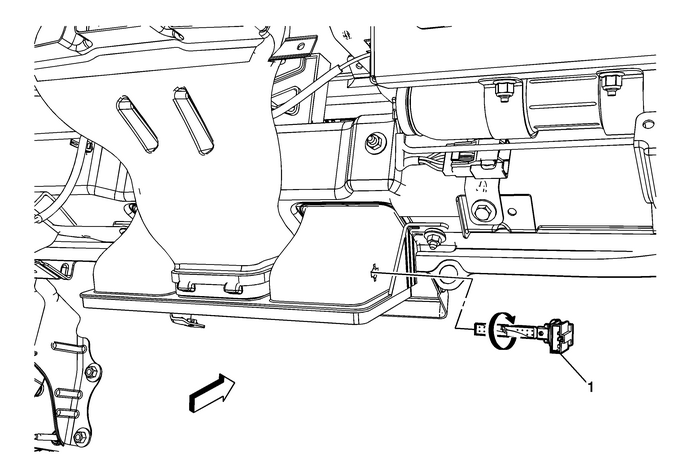

Duct Air Temperature Sensor Replacement - Upper

Callout

Component Name

Preliminary ProcedureRemove the I/P compartment door. Refer toInstrument Panel Compartment Door Replacement.Disconnect the electrical connections.

Air Temperature Sensor– Upper

Procedure

Rotate sensor¼ turn to remove.

Duct Air Temperature Sensor Replacement - Lower Engine Control Engine Control Sensors Intake Air Temp Sensor

Duct Air Temperature Sensor Replacement - LowerCalloutComponent NamePreliminary ProcedureRemove I/P Compartment door. Refer toInstrument Panel Compartment Door ReplacementDisconnect electrical connect ...

Engine Control Module Replacement Engine Control Engine Control Module

Engine Control Module ReplacementCalloutComponent Name1Engine Control Module Cover2Engine Control ModuleCaution:Turn the ignition OFF when installing or removing the controlmodule connectors and disco ...
