Driver or Passenger Seat Inner Recliner Finish Cover Replacement Seats

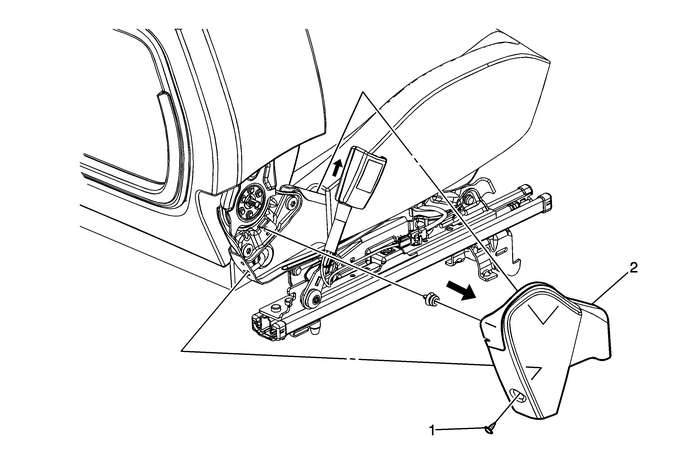

Driver or Passenger Seat Inner Recliner Finish Cover Replacement

Callout

Component Name

Driver or Passenger Seat Inner Recliner Finish CoverRetainer

Caution:Refer toFastener Caution.

Tighten

5-Y(44-lb-in)

Driver or Passenger Seat Inner Recliner Finish Cover

Procedure

Firmly grasp the top of the finish cover, Pull upward andthen outboard to disengage the finish cover from the seat cushionframe.
