Dome and Reading Lamp Lens Replacement Lighting Interior Lighting Rear Reading Lamps

Dome and Reading Lamp Lens Replacement

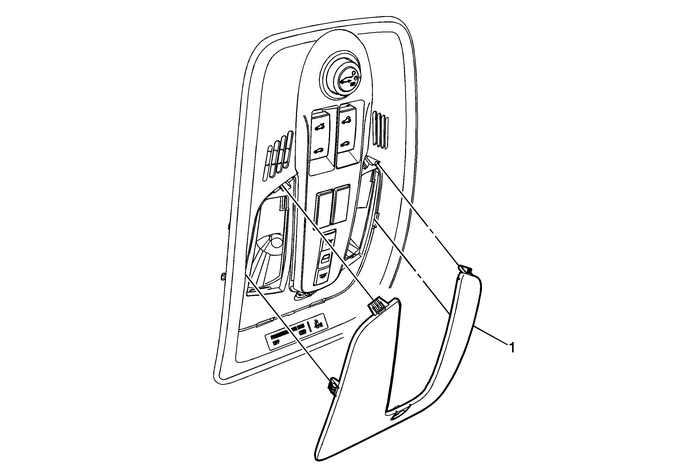

Callout

Component Name

1

Dome Lamp Lens

Procedure

Using a nylon flat bladed tool release the four integral tabson the lens from the roof console.
