Chevrolet Equinox Service Manual: Crankshaft Front Oil Seal Replacement Engine Block Seals and Gaskets

Chevrolet Equinox Service Manual / Powertrain / Engine / Crankshaft Front Oil Seal Replacement Engine Block Seals and Gaskets

Special Tools

EN-35268-ACamshaft/Front Main Seal Installer

For equivalent regional tools, refer toSpecial Tools.

Removal Procedure

Crankshaft Front Oil Seal Replacement Engine Block Seals and Gaskets

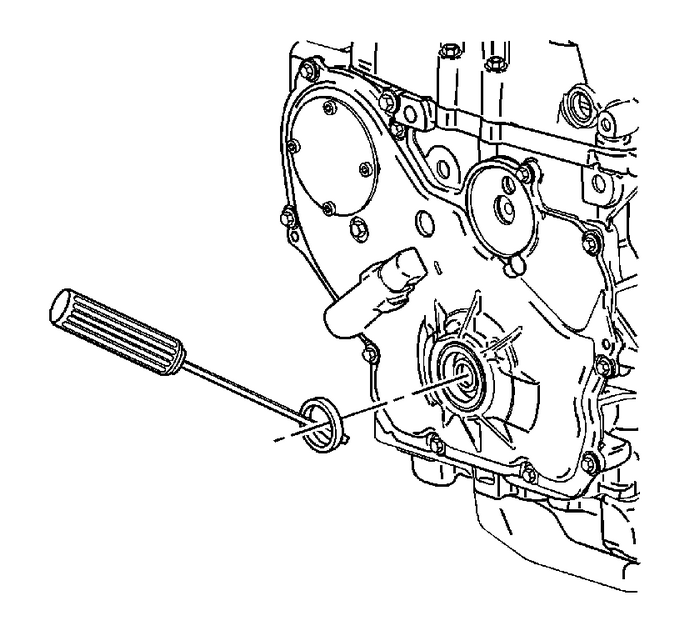

Remove the crankshaft balancer. Refer toCrankshaft Balancer Replacement.Use a flat-bladed tool to remove the seal from thefront cover.Installation Procedure

Crankshaft Front Oil Seal Replacement Engine Block Seals and Gaskets

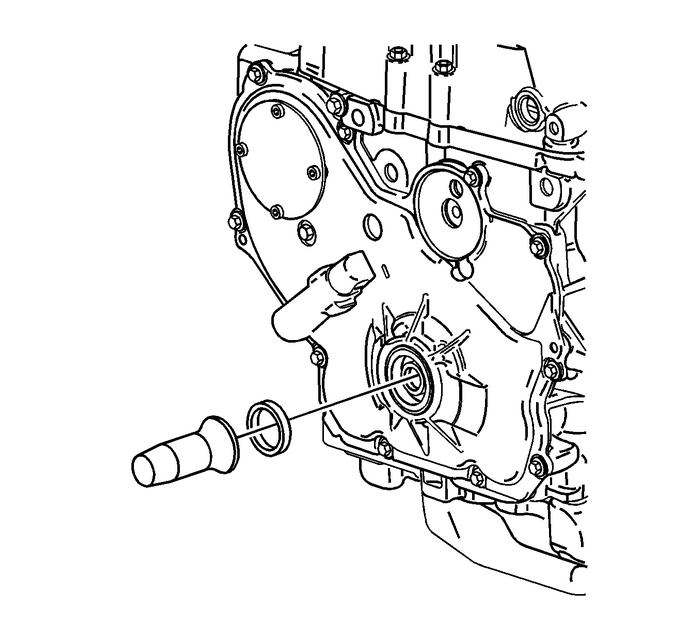

Use theEN-35268-Ainstallerin order to install the crankshaft front oil seal to theengine front cover.Install the crankshaft balancer. Refer toCrankshaft Balancer Replacement.
