Chevrolet Equinox Service Manual: Courtesy Lamp Bulb Replacement Lighting Interior Lighting Courtesy Entry Illumination

Chevrolet Equinox Service Manual / Body / Body Electrical / Courtesy Lamp Bulb Replacement Lighting Interior Lighting Courtesy Entry Illumination

Courtesy Lamp Bulb Replacement Lighting Interior Lighting Courtesy Entry Illumination

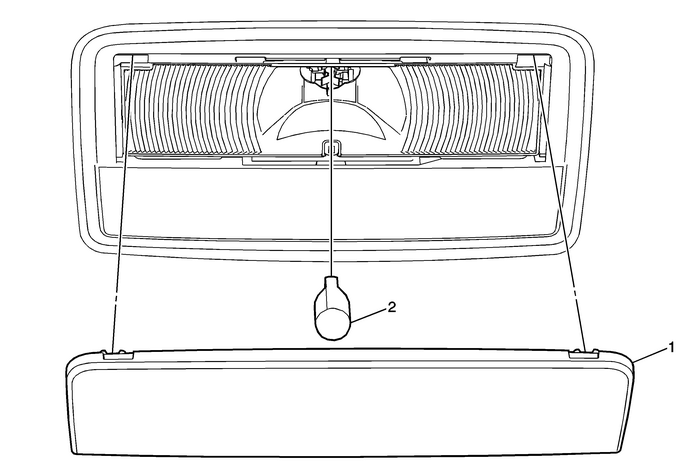

Courtesy Lamp Bulb Replacement

Callout

Component Name

1

Courtesy Lamp Lens

Procedure

Using a nylon flat bladed tool release the lens to gainaccess to the bulb.

2

Courtesy Lamp Bulb

Backup Lamp Bulb Replacement (Terrain) Lighting Exterior Lighting Backup Lamp
Backup Lamp Bulb ReplacementCalloutComponent NamePreliminary ProcedureRemove the tail lamp applique. Refer toTail Lamp Applique Replacement.1Back Up BulbWarning:When working with any type of glass or ...

Courtesy Lamp Replacement Lighting Interior Lighting Courtesy Entry Illumination
Courtesy Lamp ReplacementCalloutComponent Name1Courtesy Lamp Lens and BezelProcedureUsing a nylon flat bladed tool release the lens andbezel.2Courtesy LampProcedureRelease the retaining tabs and remov ...
