Catalytic Converter Heat Shield Replacement (LFX) Exhaust Exhaust Heat Shields

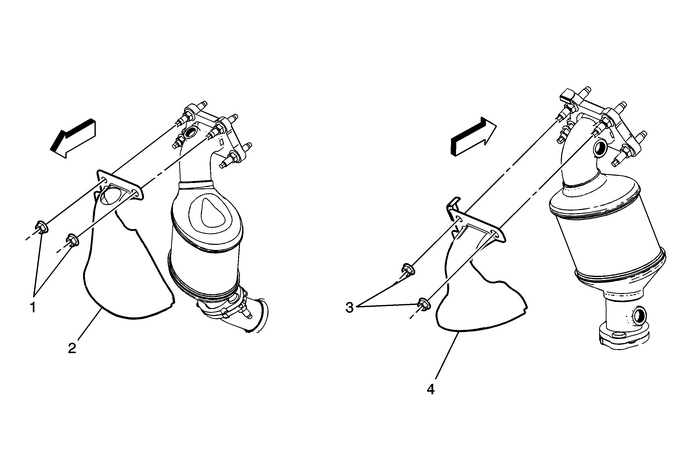

Catalytic Converter Heat Shield Replacement

Callout

Component Name

Preliminary Procedure

Raise and support the vehicle.Refer toLifting and Jacking the Vehicle

1

Catalytic Converter Nuts (Qty:-2)

Caution:Refer toFastener Caution.

ProcedureClean and inspect the studs on the engine cylinder head,replace as necessary.Verify that the studs are fully seated. Stud collar shouldtouch the surface of the engine cylinder head.Tighten nuts in a criss-cross pattern.Tighten

22-Y(16-lb-ft).

2

Catalytic Converter Heat Shield-Left

3

Catalytic Converter Nuts (Qty:-2)

Caution:Refer toFastener Caution.

ProcedureClean and inspect the studs on the engine cylinder head,replace as necessary.Verify that the studs are fully seated. Stud collar shouldtouch the surface of the engine cylinder head.Tighten nuts in a criss-cross pattern.Tighten

22-Y(16-lb-ft).

4

Catalytic Converter Heat Shield-Right
