Camshaft Position Sensor Replacement - Bank 1 (Right Side) Exhaust Engine Control Engine Control Sensors Crankshaft/Camshaft/TDC Position Sensor

Camshaft Position Sensor Replacement - Bank 1 (Right Side) Exhaust

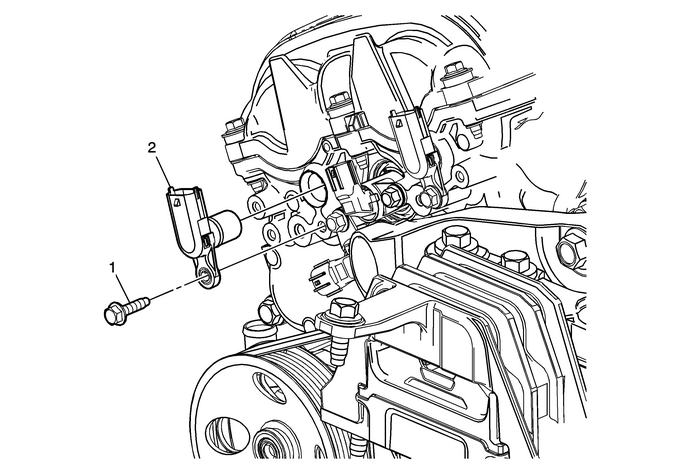

Callout

Component Name

Preliminary Procedure

Remove the air cleaner outlet duct. Refer toAir Cleaner Outlet Duct Replacement.

Camshaft Position Sensor Fastener

Caution:Refer toFastener Caution.

Tighten

10-Y(89-lb-in)

Camshaft Position Sensor

Procedure

Disconnect the electrical connector.
