Preliminary Procedure Raise the vehicle. Refer toLifting and Jacking the Vehicle. | |

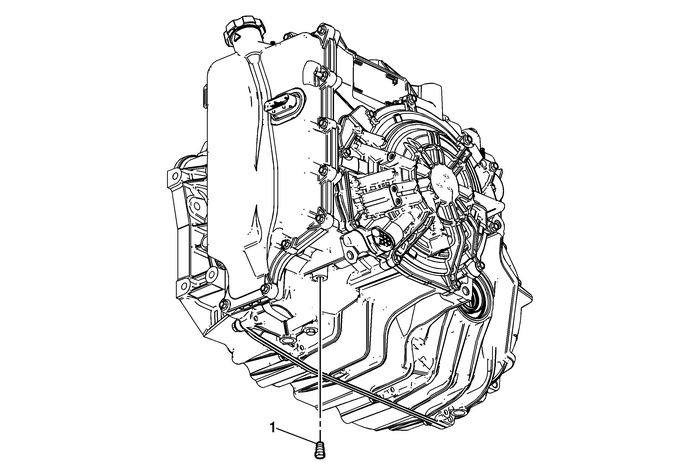

1 | Fluid Pressure Test Plug Caution:Refer toFastener Caution. Tighten12-Y(106-lb-in) |
Camshaft Timing Chain and Tensioner Removal (LAF, LEA, or LUK) Valvetrain Valvetrain Timing
Special ToolsEN-48953Camshaft Actuator Locking ToolFor equivalent regional tools, refer toSpecial Tools.Rotate the crankshaft to installEN-48953locking tool-(1).Note:Marking the chain and actuators is crucial to proceduresoperation. The camshaft actuator and timing chain must have oilremoved from th ...
