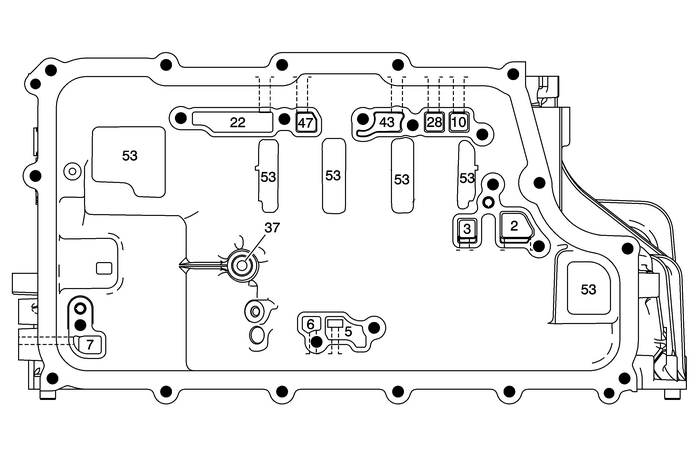

A/Trans Case Assembly– Control Valve Body Side

A/Trans Case Assembly - Control Valve Body Side Automatic Transmission Unit

(2)Line
(3)Decrease
(5)TCC Release
(6)TCC Apply
(7)Cooler Feed
(10)Compensator Feed
(22)R1
(28)35 Reverse Clutch
(37)1234 Clutch
(43)26 Clutch
(47)456 Clutch
(53)Void
