Windshield Wiper Arm Replacement (Terrain Passenger Side)

Windshield Wiper Arm Replacement

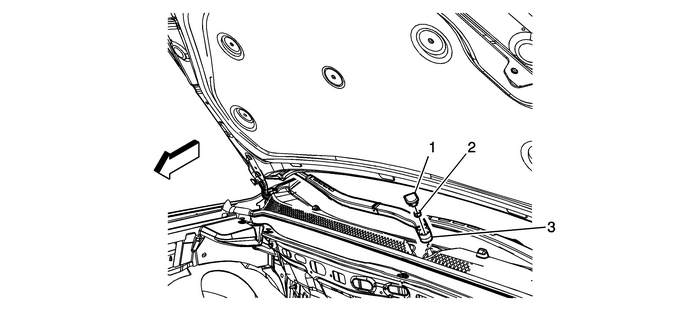

Callout

Component Name

Preliminary Procedure

Open and suitably support the hood assembly.

1

Windshield Wiper Arm Nut Cap

Procedure

Use a small flat-bladed tool to disengage the nut cap from the windshield wiper arm.

2

Windshield Wiper Arm Nut

Caution:Refer toFastener Caution.

ProcedureCarefully rock the windshield wiper arm from the windshield wiper transmission pivotshaft.Clean the knurls on the pivot shaft with a soft wire brush.When installing the new wiper arm onto the pivot shaft, align the wiper blade withthe small line in the windshield lower blackout area.Hold the wiper arm in position while securing the wiper arm nut.Tighten

28-Y (21-lb-ft)

3

Windshield Wiper Arm Assembly-Passenger Side

Procedure

Remove the windshield wiper blade. Refer toWindshield Wiper Blade Replacement.
