Chevrolet Equinox Service Manual: Water Pump Replacement (LFX) Engine Cooling Coolant Pump

Chevrolet Equinox Service Manual / Powertrain / Engine / Water Pump Replacement (LFX) Engine Cooling Coolant Pump

Special Tools

EN 46104 Water Pump Pulley Holder

For equivalent regional tools refer toSpecial Tools

Removal ProcedureDrain the cooling system. Refer toCooling System Draining and Filling.Remove the generator drive belt. Refer toDrive Belt Replacement.

Water Pump Replacement (LFX) Engine Cooling Coolant Pump

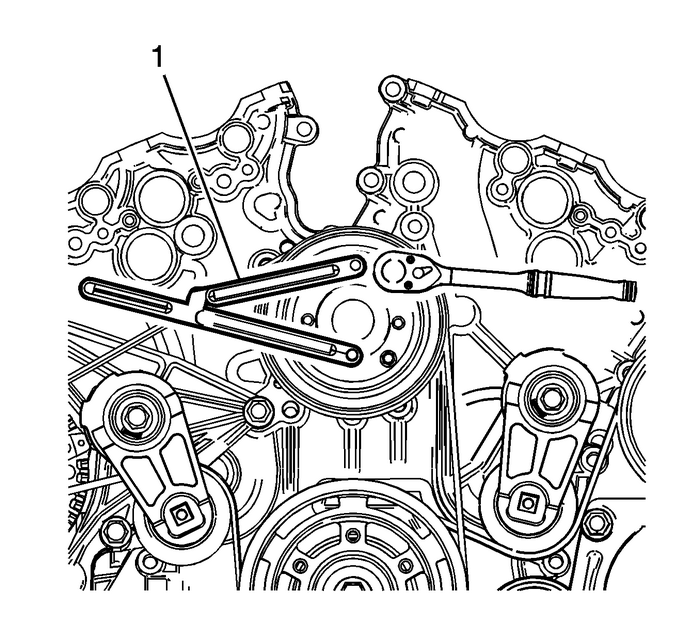

Use the EN 46104 water pump pulley holder (1) to retain the pulley.

Water Pump Replacement (LFX) Engine Cooling Coolant Pump

Remove the water pump pulley bolts and DISCARD the bolts.

Caution:This vehicle is equipped with torque-to-yield or single use fasteners. Install a NEWtorque-to-yield or single use fastener when installing this component. Failure toreplace the torque-to-yield or single use fastener could cause damage to the vehicleor component.

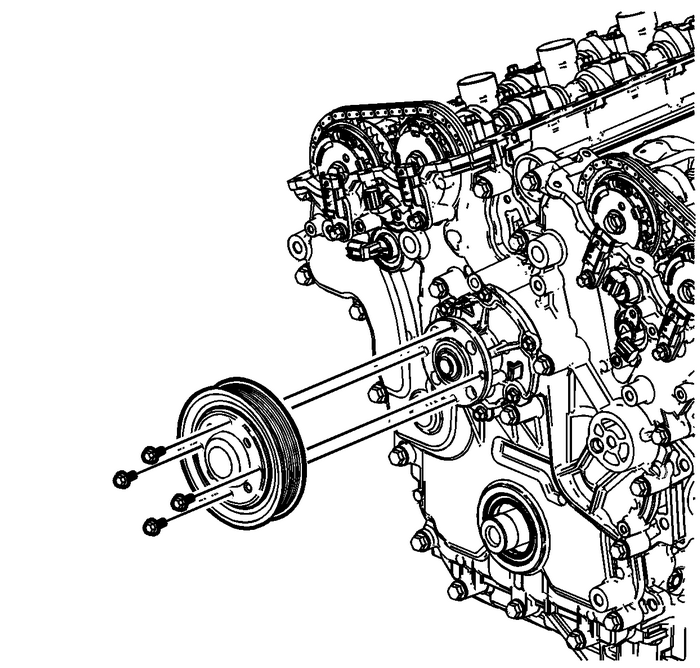

Remove the water pump pulley.

Water Pump Replacement (LFX) Engine Cooling Coolant Pump

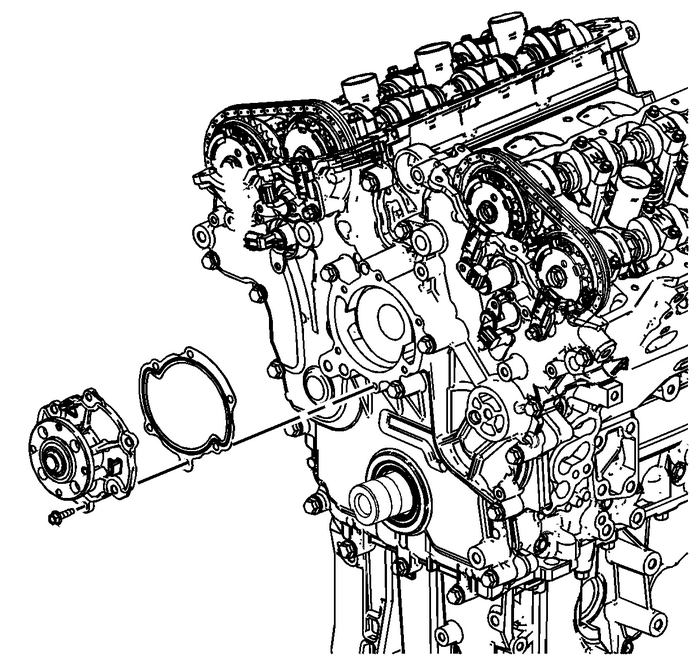

Remove the water pump bolts and DISCARD the bolts.Remove the water pump.Remove and DISCARD the water pump seal.Carefully clean the water pump sealing surfaces.Installation Procedure

Water Pump Replacement (LFX) Engine Cooling Coolant Pump

Install a NEW water pump seal.Install the water pump.

Caution:This vehicle is equipped with torque-to-yield or single use fasteners. Install a NEWtorque-to-yield or single use fastener when installing this component. Failure toreplace the torque-to-yield or single use fastener could cause damage to the vehicleor component.

Caution:Refer toFastener Caution.

Install the NEW water pump bolts and hand tighten the water pump bolts.

Water Pump Replacement (LFX) Engine Cooling Coolant Pump

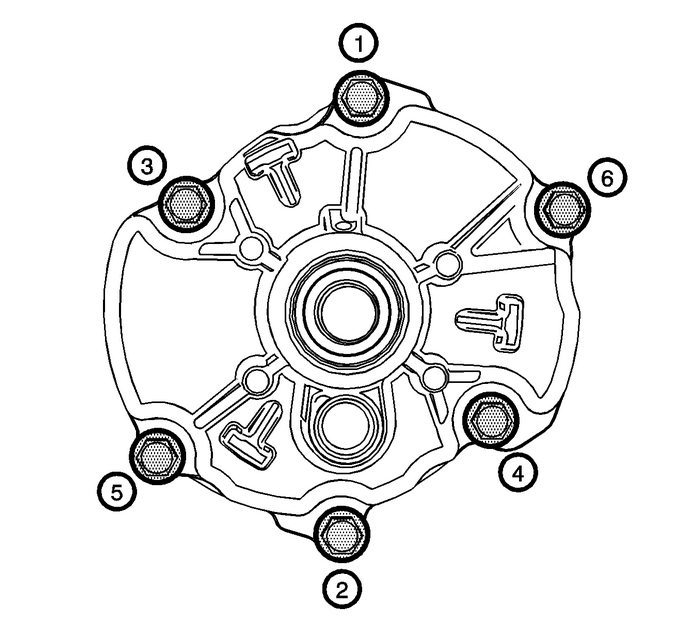

Tighten the water pump bolts in sequence.On the initial pass, tighten the bolts in sequence to 10-Y (89-lb-in).On the second pass, tighten the bolts in sequence to 10-Y (89-lb-in).On the final pass, tighten the bolts in sequence shown an additional 45-degrees.

Water Pump Replacement (LFX) Engine Cooling Coolant Pump

Install the water pump pulley and the NEW water pump pulley bolts.

Water Pump Replacement (LFX) Engine Cooling Coolant Pump

Use the EN 46104 water pump pulley holder (1) to hold the pulley.Install the water pump pulley bolts and tighten to 10-Y (89-lb-in).Install the generator drive belt. Refer toDrive Belt Replacement.Fill the cooling system. Refer toCooling System Draining and Filling.
