Chevrolet Equinox Service Manual: Water Pump Removal Engine Cooling Coolant Pump

Chevrolet Equinox Service Manual / Powertrain / Engine / Water Pump Removal Engine Cooling Coolant Pump

Special Tools

EN 46104 Water Pump Pulley Holding Tool

For equivalent regional tools, refer toSpecial Tools.

Water Pump Removal Engine Cooling Coolant Pump

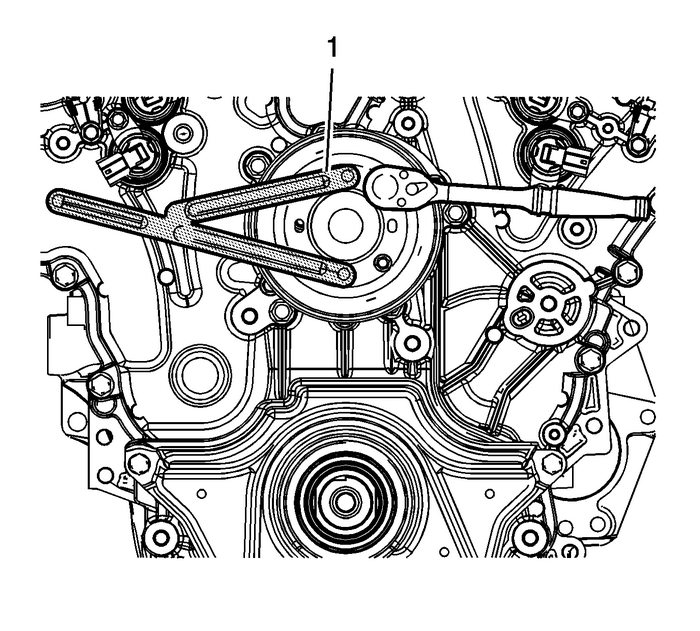

Install the EN 46104 holding tool -(1) onto the water pump pulley.

Water Pump Removal Engine Cooling Coolant Pump

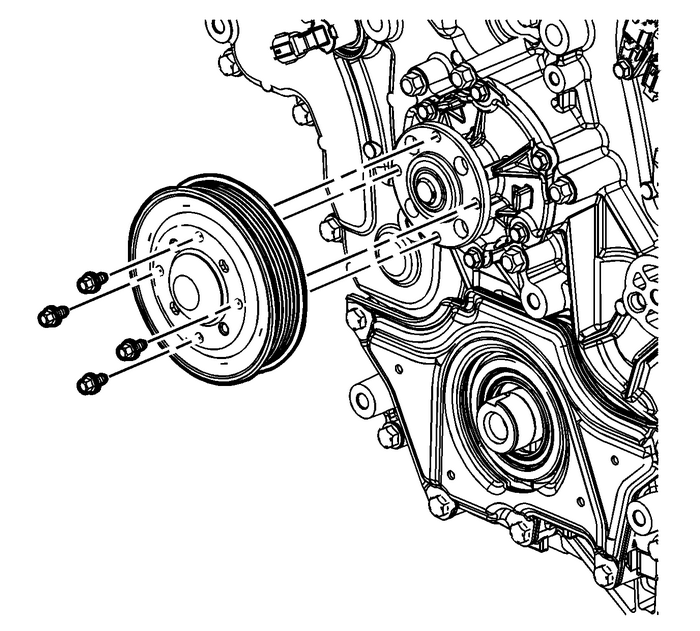

Remove the water pump pulley bolts.Remove the water pump pulley.

Water Pump Removal Engine Cooling Coolant Pump

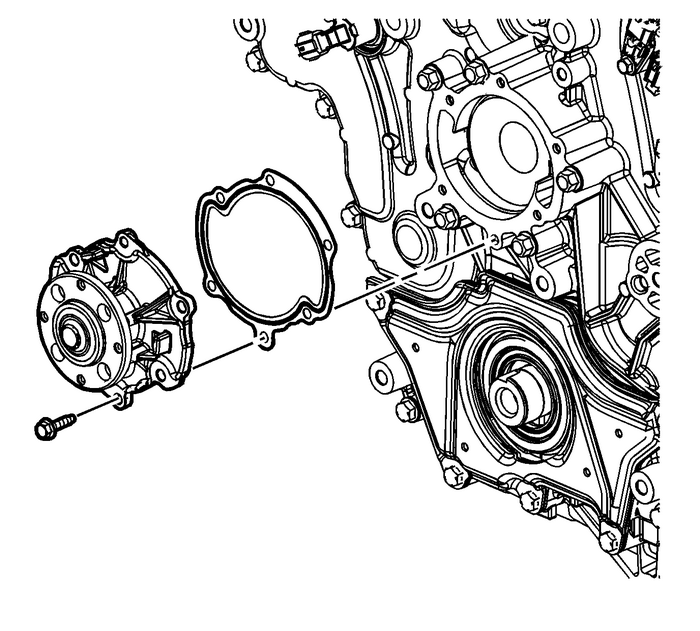

Remove and discard the water pump bolts.Remove the water pump from the front cover.Remove the water pump gasket.
