Water Outlet Replacement (LFX) Engine Cooling

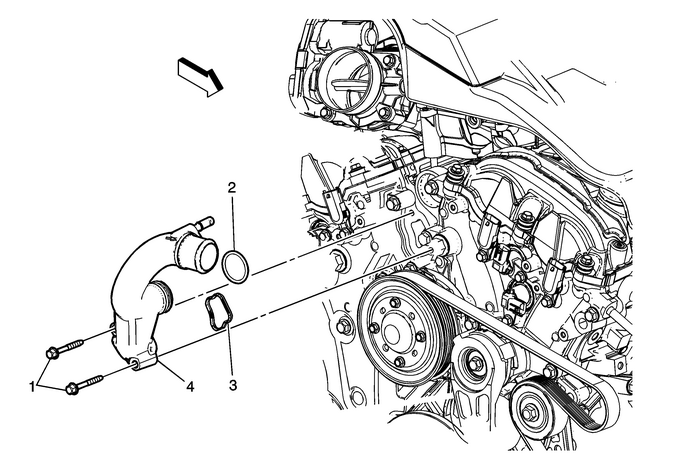

Water Outlet Replacement

Callout

Component Name

Preliminary ProceduresDrain the cooling system. Refer toCooling System Draining and Filling.Remove the right engine mount bracket. Refer toEngine Mount Bracket Replacement - Right Side.Remove the air cleaner. Refer toAir Cleaner Assembly Replacement.

1

Water Outlet Bolt (Qty:-2)

Caution:Refer toFastener Caution.

Tighten

10-Y-(89-lb-in)

2

Seal

3

Gasket

4

Water Outlet

Note:Clean the mating surfaces, replace the seal and gasket.
