Valve Rocker Arm Removal - Right Side Valvetrain Valve Actuating Assembly Rocker Arms

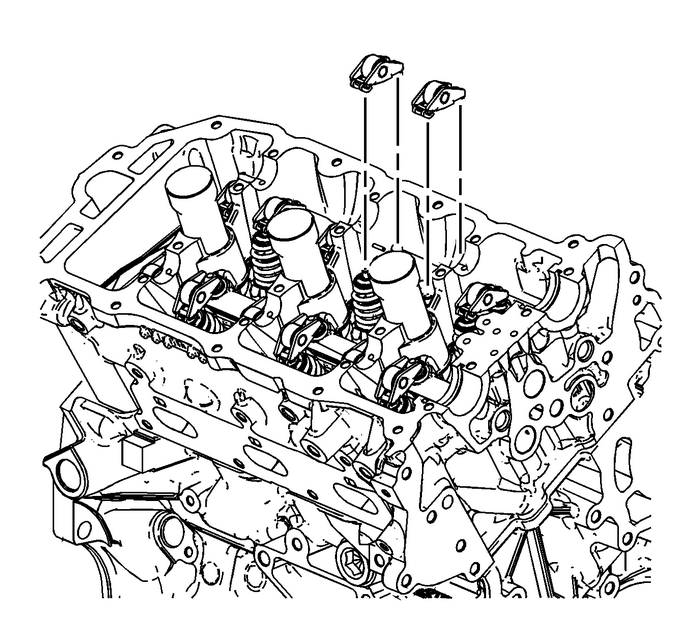

Remove the valve rocker arms from the cylinder head. If therocker arms are to be reused, keep in order so they can bereinstalled in the same position.

Cylinder Head Removal - Left Side Engine Block Cylinder Head

Remove the two-front M8 left cylinder head bolts-(1) and discard.Remove the left cylinder head bolts-(2) and discard.Remove the left cylinder head-(3).Remove and discard the left cylinder head gasket- ...

Water Outlet Removal Engine Cooling

Remove the water outlet bolts-(1).Remove the water outlet-(2).Remove the water outlet seals-(3, 4). ...
