Chevrolet Equinox Service Manual: Transmission Parts Kit Specifications Automatic Transmission Unit

Chevrolet Equinox Service Manual / Powertrain / Transmission/Transaxle / Transmission Parts Kit Specifications Automatic Transmission Unit

Table 1: A/Trans Seal Kit (Gen 1& 2) 24251028
Table 2: Front Wheel Seal Kit (Gen 1& 2) 19258415
Table 3: Front Wheel Seal Kit (Gen 1& 2) 19258416
Table 4: A/Trans Seal Kit (Gen 1) 24251353 (1 of 2)
Table 5: A/Trans Seal Kit (Gen 1) 24251353 (2 of 2)
Table 6: A/Trans Seal Kit (Gen 2) 24260603 (1 of 2)
Table 7: A/Trans Seal Kit (Gen 2) 24260603 (2 of 2)
Table 8: Transmission Kit (Gen 1) 24260701
Table 9: Control Valve Body Kit (Gen 1) 24248473
Table 10: Control Valve Body Kit (Gen 2) 24260702
Table 11: Clutch Plate Package (Gen 1) 24249460
Table 12: Clutch Plate Package (Gen 2) 24260695
Table 13: 4-5-6 Plate Assembly (Gen 2) 24260700
Table 14: Low and Reverse Plate Assembly (Gen 2) 24260696
Table 15: 3-5 Reverse Plate Assembly (Gen 2) 24260697
Table 16: 2-6 Plate Assembly (Gen 2) 24260698
Table 17: 1-2-3-4 Plate Assembly (Gen 2) 24260699
Table 18: A/Trans Seal Kit (Gen 2) 24260704
Table 19: A/Trans Auxiliary Seal Kit (Gen 2) 24260705

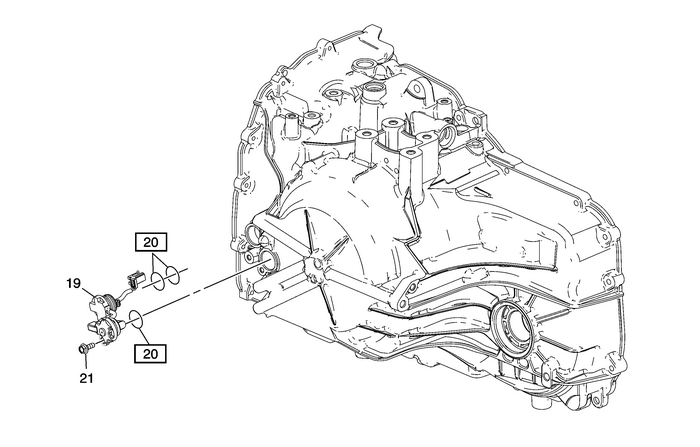

A/Trans Seal Kit (Gen 1& 2) 24251028

Transmission Parts Kit Specifications Automatic Transmission Unit

Note:Callouts with boxes around them indicate part is included inthe service kit. Callouts without boxes are shown for relationshippurposes only.

A/Trans Seal Kit (Gen 1& 2) 24251028

Callout

Quantity

Component Name

20

3

A/Trans Input Speed Sensor Assembly O-Ring Seal

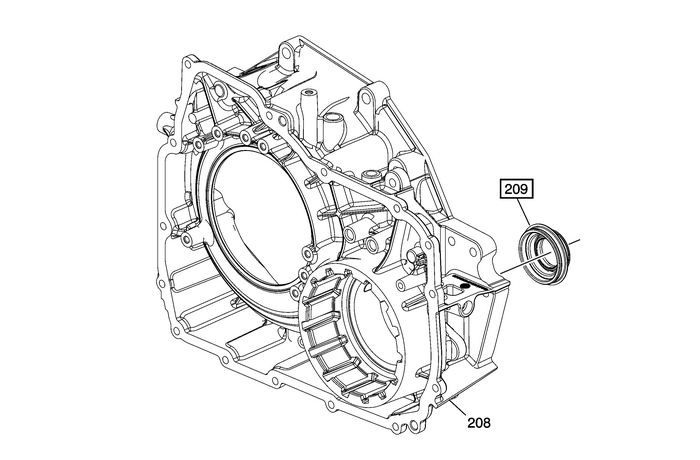

Front Wheel Seal Kit (Gen 1& 2) 19258415

Transmission Parts Kit Specifications Automatic Transmission Unit

Note:Callouts with boxes around them indicate part is included inthe service kit. Callouts without boxes are shown for relationshippurposes only.

Front Wheel Seal Kit (Gen 1& 2) 19258415

Callout

Quantity

Component Name

209

1

Front Wheel Drive Shaft Oil Seal Assembly

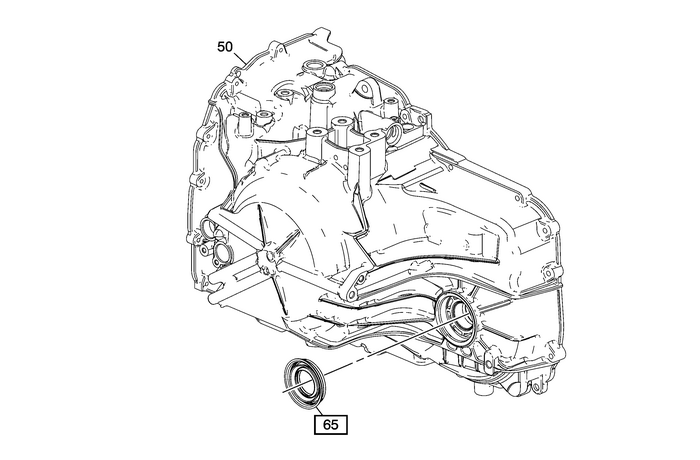

Front Wheel Seal Kit (Gen 1& 2) 19258416

Transmission Parts Kit Specifications Automatic Transmission Unit

Note:Callouts with boxes around them indicate part is included inthe service kit. Callouts without boxes are shown for relationshippurposes only.

Front Wheel Seal Kit (Gen 1& 2) 19258416

Callout

Quantity

Component Name

65

1

Drive Shaft Oil Seal Assembly

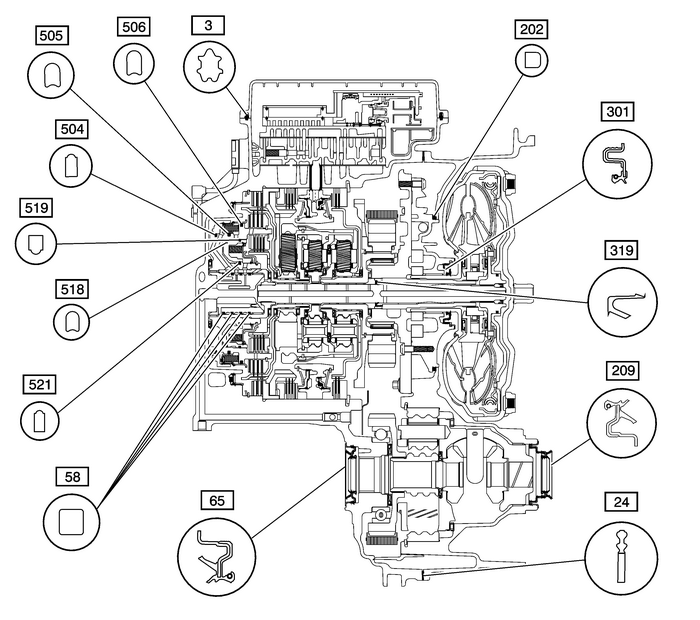

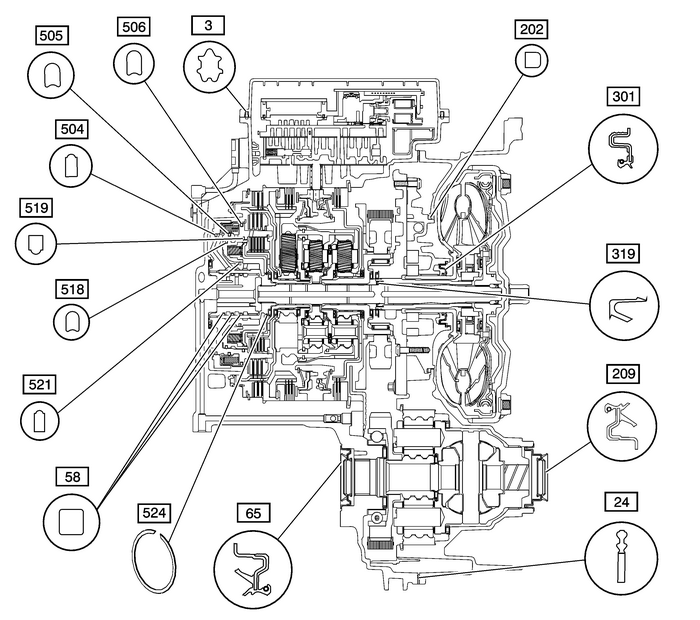

A/Trans Seal Kit (Gen 1) 24251353 (1 of 2)

Transmission Parts Kit Specifications Automatic Transmission Unit

A/Trans Seal Kit (Gen 1) 24251353 (1 of 2)

Callout

Quantity

Component Name

3

1

Control Valve Body Cover Gasket

24

1

Torque Converter Housing Gasket

58

4

3-5-Reverse and 4-5-6 Clutch Fluid Seal Ring

65

1

Drive Shaft Oil Seal Assembly

202

1

Torque Converter and Differential Housing Seal

209

1

Front Wheel Drive Shaft Oil Seal Assembly

301

1

Torque Converter Fluid Seal Assembly

319

1

Torque Converter Fluid Seal Assembly

504

1

3-5-Reverse Clutch Piston Inner Seal

505

1

3-5-Reverse Clutch Piston Inner Seal

506

1

3-5-Reverse Clutch Piston Dam Seal

518

1

4-5-6 Clutch Piston Outer Seal

519

1

4-5-6 Clutch Piston Outer Seal

521

1

4-5-6 Clutch Piston Inner Seal

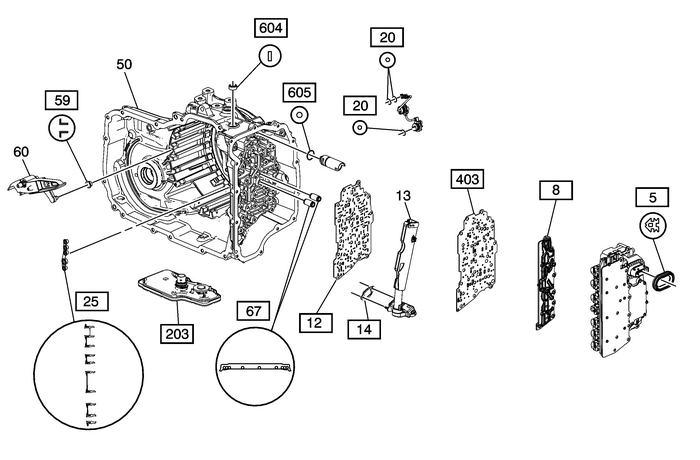

A/Trans Seal Kit (Gen 1) 24251353 (2 of 2)

Transmission Parts Kit Specifications Automatic Transmission Unit

604

Note:Callouts with boxes around them indicate part is included inthe service kit. Callouts without boxes are shown for relationshippurposes only.

A/Trans Seal Kit (Gen 1) 24251353 (2 of 2)

Callout

Quantity

Component Name

5

1

Control Valve Body Cover Hole Seal

8

1

Control Valve Body Filter Plate Assembly

12

1

Control Valve Body Spacer Plate Assembly

14

1

A/Trans Fluid Level Control Valve Gasket

20

3

A/Trans Input Speed Sensor Assembly O-Ring Seal

25

1

A/Trans Fluid Pump Seal Assembly

59

1

Drive Link Lube Fluid Seal

67

1

1-2-3-4 and Low Reverse Clutch Fluid Passage Seal

203

1

A/Trans Fluid Filter Assembly

403

1

Channel Plate to Valve Body Spacer Plate Assembly

604

1

Manual Shift Shaft Seal

605

1

Park Pawl Actuator Guide Seal

A/Trans Seal Kit (Gen 2) 24260603 (1 of 2)

Transmission Parts Kit Specifications Automatic Transmission Unit

524

A/Trans Seal Kit (Gen 2) 24260603 (1 of 2)

Callout

Quantity

Component Name

3

1

Control Valve Body Cover Gasket

24

1

Torque Converter Housing Gasket

58

3

3-5-Reverse and 4-5-6 Clutch Fluid Seal Ring

65

1

Drive Shaft Oil Seal Assembly

202

1

Torque Converter and Differential Housing Seal

209

1

Front Wheel Drive Shaft Oil Seal Assembly

301

1

Torque Converter Fluid Seal Assembly

319

1

Torque Converter Fluid Seal Assembly

504

1

3-5-Reverse Clutch Piston Inner Seal

505

1

3-5-Reverse Clutch Piston Inner Seal

506

1

3-5-Reverse Clutch Piston Dam Seal

518

1

4-5-6 Clutch Piston Outer Seal

519

1

4-5-6 Clutch Piston Outer Seal

521

1

4-5-6 Clutch Piston Inner Seal

524

1

4-5-6 Clutch Piston Fluid Dam Retainer Ring

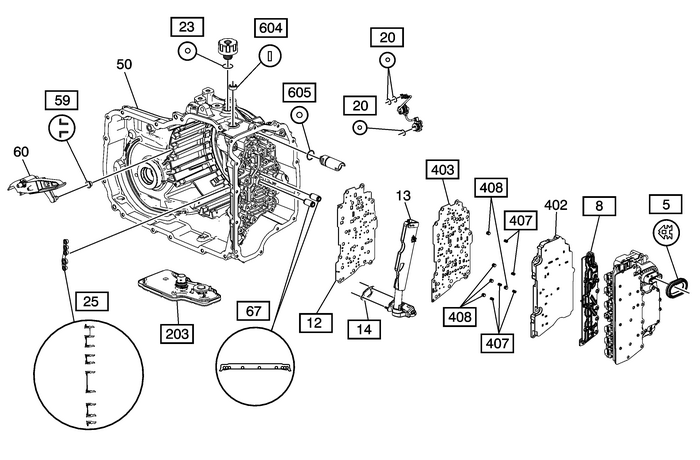

A/Trans Seal Kit (Gen 2) 24260603 (2 of 2)

Transmission Parts Kit Specifications Automatic Transmission Unit

50

Note:Callouts with boxes around them indicate part is included inthe service kit. Callouts without boxes are shown for relationshippurposes only.

A/Trans Seal Kit (Gen 2) 24260603 (2 of 2)

Callout

Quantity

Component Name

5

1

Control Valve Body Cover Hole Seal

8

1

Control Valve Body Filter Plate Assembly

12

1

Control Valve Body Spacer Plate Assembly

14

1

A/Trans Fluid Level Control Valve Gasket

20

3

A/Trans Input Speed Sensor Assembly O-Ring Seal

23

1

Fill Cap Seal

25

1

A/Trans Fluid Pump Seal Assembly

59

1

Drive Link Lube Fluid Seal

67

1

1-2-3-4 and Low Reverse Clutch Fluid Passage Seal

203

1

A/Trans Fluid Filter Assembly

403

1

Channel Plate to Valve Body Spacer Plate Assembly

407

5

Actuator Feed Accumulator Spring

408

5

Actuator Feed Accumulator Piston

604

1

Manual Shift Shaft Seal

605

1

Park Pawl Actuator Guide Seal

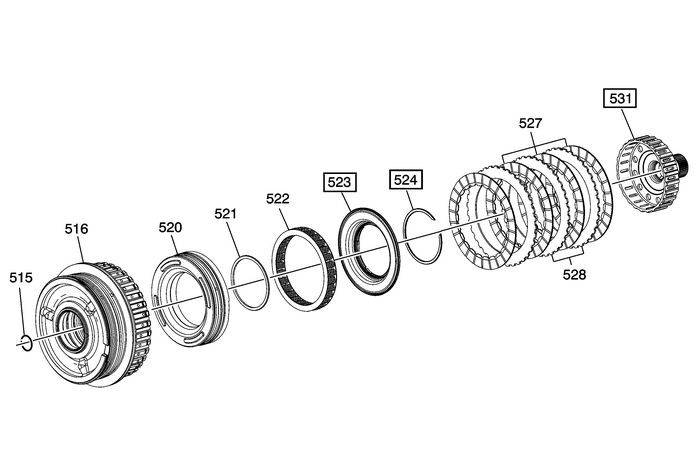

Transmission Kit (Gen 1) 24260701

Transmission Parts Kit Specifications Automatic Transmission Unit

Note:Callouts with boxes around them indicate part is included inthe service kit. Callouts without boxes are shown for relationshippurposes only.

Transmission Kit (Gen 1) 24260701

Callout

Quantity

Component Name

523

1

4-5-6 Clutch Piston Fluid Dam Assembly

524

1

4-5-6 Clutch Piston Fluid Dam Retainer Ring

531

1

Reaction Carrier Hub Assembly

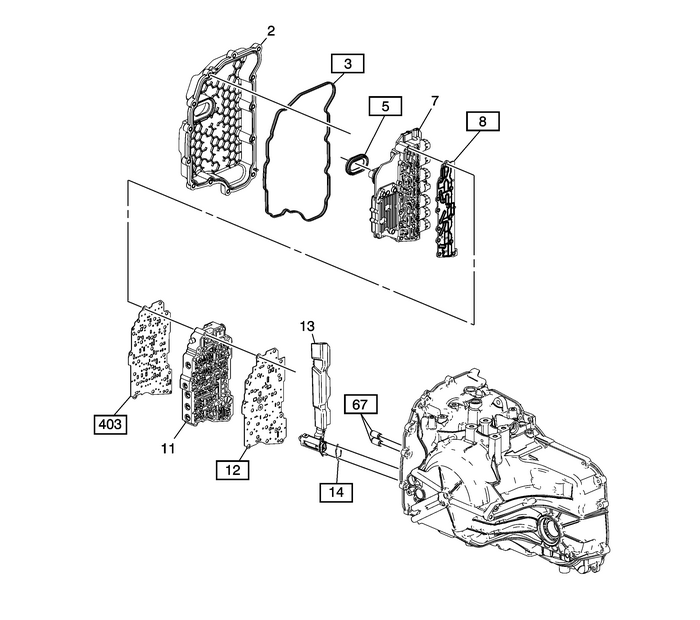

Control Valve Body Kit (Gen 1) 24248473

Transmission Parts Kit Specifications Automatic Transmission Unit

Note:Callouts with boxes around them indicate part is included inthe service kit. Callouts without boxes are shown for relationshippurposes only.

Control Valve Body Kit (Gen 1) 24248473

Callout

Quantity

Component Name

3

1

Control Valve Body Cover Gasket

5

1

Control Valve Body Cover Hole Seal

8

1

Control Valve Body Filter Plate Assembly

12

1

Control Valve Body Spacer Plate Assembly

14

1

A/Trans Fluid Level Control Valve Gasket

67

2

1-2-3-4 and Low Reverse Clutch Fluid Passage Seal

403

1

Channel Plate to Valve Body Spacer Plate Assembly

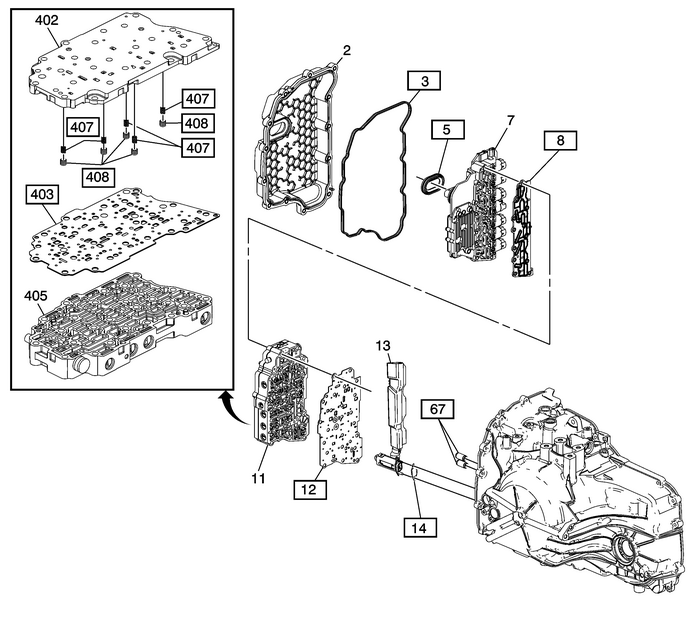

Control Valve Body Kit (Gen 2) 24260702

Transmission Parts Kit Specifications Automatic Transmission Unit

Note:Callouts with boxes around them indicate part is included inthe service kit. Callouts without boxes are shown for relationshippurposes only.

Control Valve Body Kit (Gen 2) 24260702

Callout

Quantity

Component Name

3

1

Control Valve Body Cover Gasket

5

1

Control Valve Body Cover Hole Seal

8

1

Control Valve Body Filter Plate Assembly

12

1

Control Valve Body Spacer Plate Assembly

14

1

A/Trans Fluid Level Control Valve Gasket

67

2

1-2-3-4 and Low Reverse Clutch Fluid Passage Seal

403

1

Channel Plate to Valve Body Spacer Plate Assembly

407

5

Actuator Feed Accumulator Spring

408

5

Actuator Feed Accumulator Piston

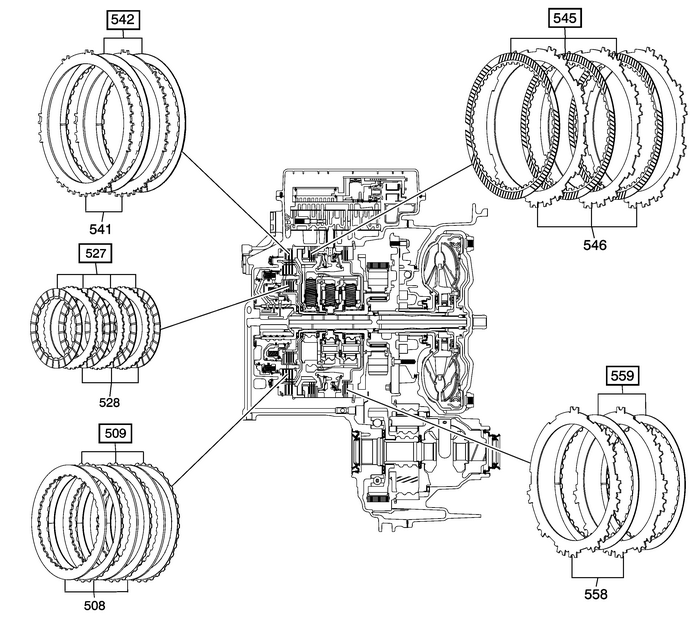

Clutch Plate Package (Gen 1) 24249460

Transmission Parts Kit Specifications Automatic Transmission Unit

545542559

Note:Callouts with boxes around them indicate part is included inthe service kit. Callouts without boxes are shown for relationshippurposes only.

Clutch Plate Package (Gen 1) 24249460

Callout

Quantity

Component Name

509

3

3-5 Reverse Clutch (w/Friction Material) PlateAssembly

527

4

4-5-6 Clutch (w/Friction Material) Plate Assembly

542

2

2-6 Clutch (w/Friction Material) Plate Assembly

545

3

Low and Reverse Clutch (w/Friction Material) PlateAssembly

559

2

1-2-3-4 Clutch (w/Friction Material) Plate Assembly

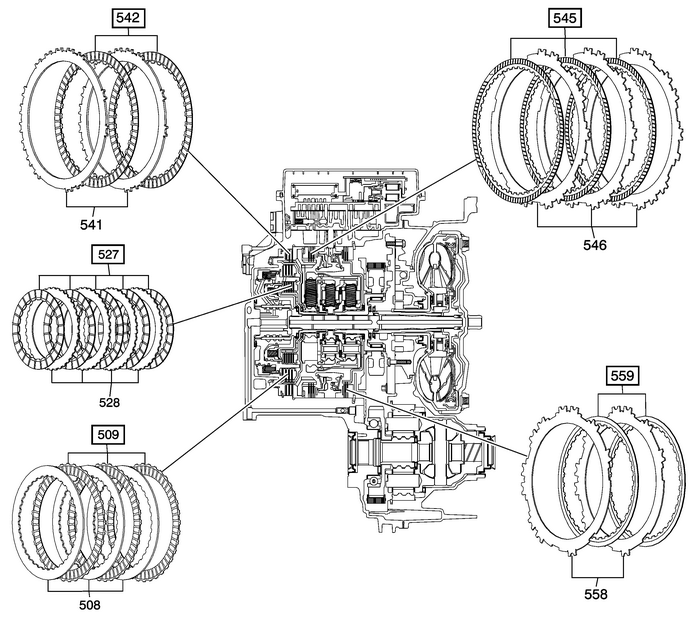

Clutch Plate Package (Gen 2) 24260695

Transmission Parts Kit Specifications Automatic Transmission Unit

542545546508

Note:Callouts with boxes around them indicate part is included inthe service kit. Callouts without boxes are shown for relationshippurposes only.

Clutch Plate Package (Gen 2) 24260695

Callout

Quantity

Component Name

509

3

3-5 Reverse Clutch (w/Friction Material) PlateAssembly

527

5

4-5-6 Clutch (w/Friction Material) Plate Assembly

542

2

2-6 Clutch (w/Friction Material) Plate Assembly

545

3

Low and Reverse Clutch (w/Friction Material) PlateAssembly

559

2

1-2-3-4 Clutch (w/Friction Material) Plate Assembly

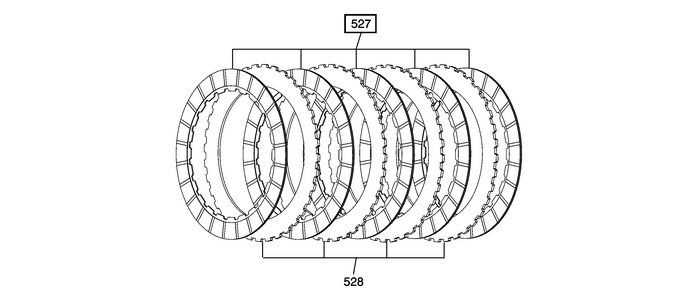

4-5-6 Plate Assembly (Gen 2) 24260700

Transmission Parts Kit Specifications Automatic Transmission Unit

Note:Callouts with boxes around them indicate part is included inthe service kit. Callouts without boxes are shown for relationshippurposes only.

4-5-6 Plate Assembly (Gen 2) 24260700

Callout

Quantity

Component Name

527

5

4-5-6 Clutch (w/Friction Material) Plate Assembly

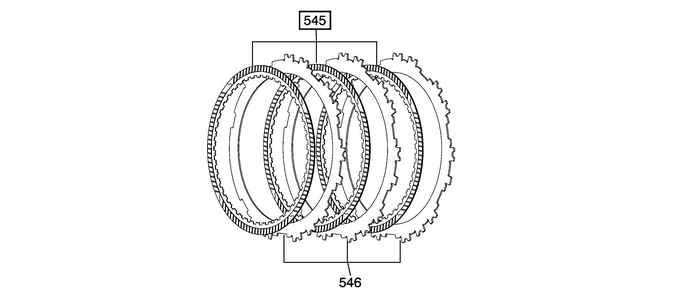

Low and Reverse Plate Assembly (Gen 2) 24260696

Transmission Parts Kit Specifications Automatic Transmission Unit

Note:Callouts with boxes around them indicate part is included inthe service kit. Callouts without boxes are shown for relationshippurposes only.

Low and Reverse Plate Assembly (Gen 2) 24260696

Callout

Quantity

Component Name

545

3

Low and Reverse Clutch (w/Friction Material) PlateAssembly

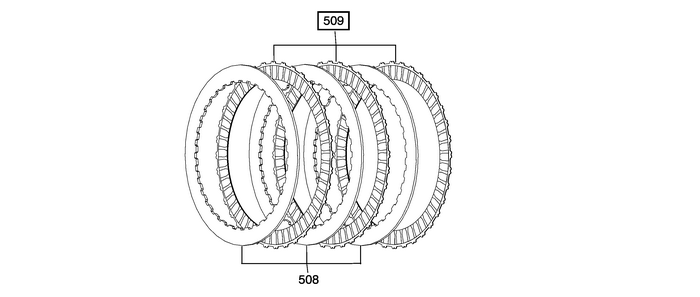

3-5 Reverse Plate Assembly (Gen 2) 24260697

Transmission Parts Kit Specifications Automatic Transmission Unit

508

Note:Callouts with boxes around them indicate part is included inthe service kit. Callouts without boxes are shown for relationshippurposes only.

3-5 Reverse Plate Assembly (Gen 2) 24260697

Callout

Quantity

Component Name

509

3

3-5 Reverse Clutch (w/Friction Material) PlateAssembly

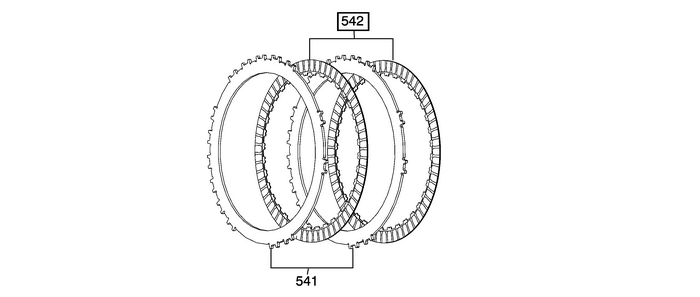

2-6 Plate Assembly (Gen 2) 24260698

Transmission Parts Kit Specifications Automatic Transmission Unit

Note:Callouts with boxes around them indicate part is included inthe service kit. Callouts without boxes are shown for relationshippurposes only.

2-6 Plate Assembly (Gen 2) 24260698

Callout

Quantity

Component Name

542

2

2-6 Clutch (w/Friction Material) Plate Assembly

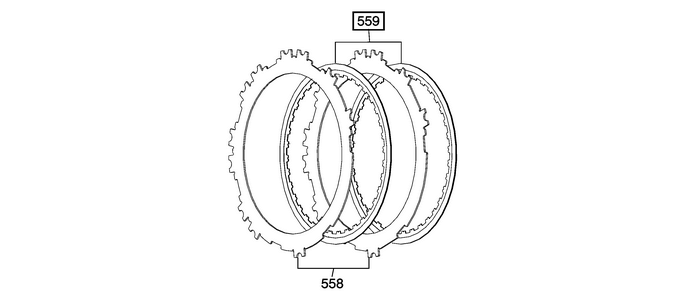

1-2-3-4 Plate Assembly (Gen 2) 24260699

Transmission Parts Kit Specifications Automatic Transmission Unit

Note:Callouts with boxes around them indicate part is included inthe service kit. Callouts without boxes are shown for relationshippurposes only.

1-2-3-4 Plate Assembly (Gen 2) 24260699

Callout

Quantity

Component Name

559

2

1-2-3-4 Clutch (w/Friction Material) Plate Assembly

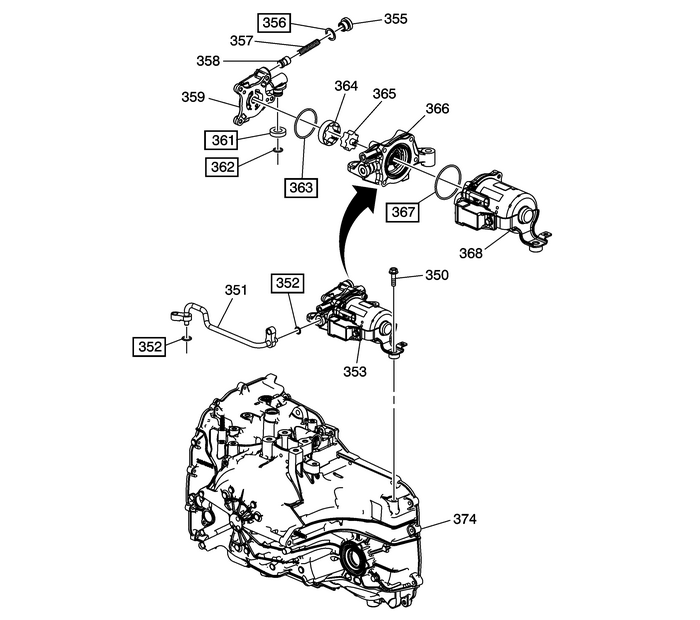

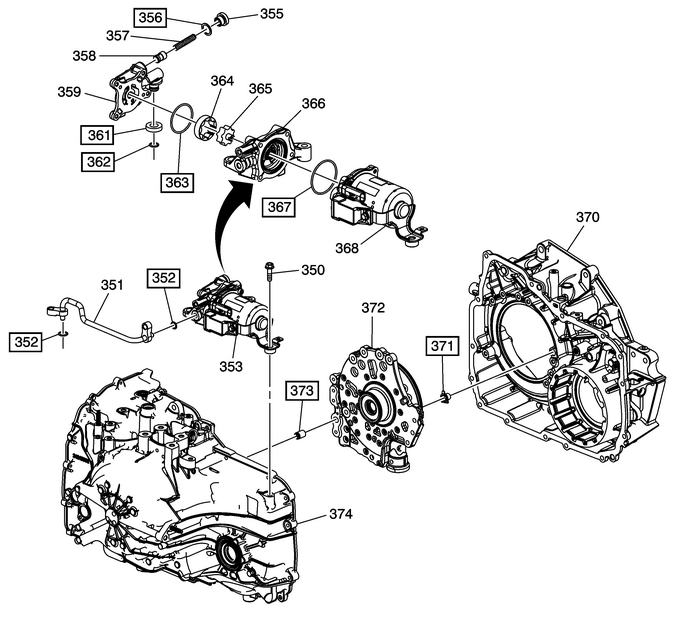

A/Trans Seal Kit (Gen 2) 24260704

Transmission Parts Kit Specifications Automatic Transmission Unit

Note:Callouts with boxes around them indicate part is included inthe service kit. Callouts without boxes are shown for relationshippurposes only.

A/Trans Seal Kit (Gen 2) 24260704

Callout

Quantity

Component Name

352

2

A/Trans Auxiliary Fluid Pump Outlet Pipe Seal Assembly

356

1

Pressure Regulator Valve Spring Spacer

361

1

A/Trans Auxiliary Fluid Pump Gasket

362

1

A/Trans Auxiliary Fluid Pump Seal

363

1

A/Trans Auxiliary Fluid Pump Cover Seal

367

1

A/Trans Auxiliary Fluid Pump Motor Cover Seal–O-Ring

371

1

A/Trans Auxiliary Fluid Inlet Pump Seal

373

1

A/Trans Fluid Trough Check Ball

A/Trans Auxiliary Seal Kit (Gen 2) 24260705

Transmission Parts Kit Specifications Automatic Transmission Unit

Note:Callouts with boxes around them indicate part is included inthe service kit. Callouts without boxes are shown for relationshippurposes only.

A/Trans Auxiliary Seal Kit (Gen 2) 24260705

Callout

Quantity

Component Name

352

2

A/Trans Auxiliary Fluid Pump Outlet Pipe Seal Assembly

356

1

Pressure Regulator Valve Spring Spacer

361

1

A/Trans Auxiliary Fluid Pump Gasket

362

1

A/Trans Auxiliary Fluid Pump Seal

363

1

A/Trans Auxiliary Fluid Pump Cover Seal

367

1

A/Trans Auxiliary Fluid Pump Motor Cover Seal–O-Ring

3-5-Reverse and 4-5-6 Clutch Housing Assemble (6T40/45/50 - Gen 2) Automatic Transmission Unit
Table 1: 4–5–6 Clutch Piston InstallationTable 2: 4–5–6 Clutch Fluid Dam InstallationTable 3: 3–5 Reverse Clutch Plates InstallationTable 4: Reluctor Wheel and Piston InstallationTable 5: 4 ...

Front Differential Drive Pinion Bearing Cup, Washer, and Lubricant Dam Replacement - Torque Converter Housing Side Automatic Transmission Unit
Table 1: Bearing Cup, Washer and Lubricant Dam RemovalTable 2: Bearing Cup, Washer and Lubricant Dam InstallationBearing Cup, Washer and Lubricant Dam RemovalupBearing Cup, Washer and Lubricant Dam Re ...

Other materials:

Power Outlets
The vehicle has three 12-volt accessory power outlets, which can be used to plug in electrical equipment, such as a cell phone or MP3 player. There are power outlets:  On the center stack below the climate control system.  On the rear of the center floor console.  I ...

© 2017-2019 Copyright www.cequinox.com
