Chevrolet Equinox Service Manual: Transmission Fluid Drain and Fill Automatic Transmission Unit
Removal Procedure

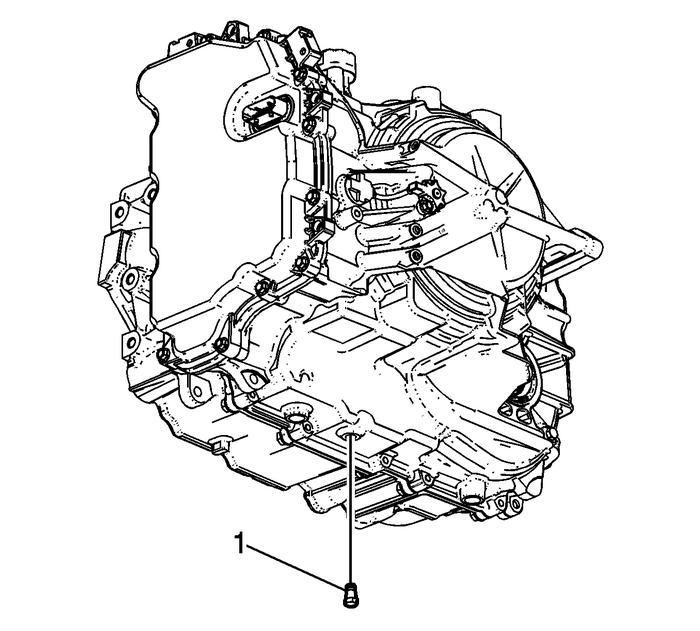

Raise and support the vehicle. Refer toLifting and Jacking the Vehicle.Remove the fluid drain plug-(1).Drain transmission fluid into a suitable container.
Caution:Refer toComponent Fastener Tightening Caution.
Install the fluid drain plug-(1) and tighten to12-Y(106-lb-in).Installation Procedure
Lower the vehicle.Remove the fluid fill cap-(1).Fill the transmission to the proper level with the correctfluid. Refer toTransmission Fluid Level and Condition CheckandFluid Capacity Specifications.Install the fluid fill cap-(1).
Fill Plug Replacement Automatic Transmission Unit
Removal ProcedureRaise and support the vehicle. Refer toLifting and Jacking the Vehicle.Remove the fill plug-(1).Installation ProcedureClean the fill plug and apply adhesive GM-P/N-12345493 (Canadian- ...
Intermediate Drive Shaft Bearing Shield Replacement Automatic Transmission Unit
Removal ProcedureRaise and support the vehicle. Refer toLifting and Jacking the Vehicle.Remove the right front wheel drive shaft. Refer toFront Wheel Drive Shaft Replacement.Remove the intermediate dr ...
