Transmission Fluid Cooler Outlet Pipe Replacement Automatic Transmission Unit

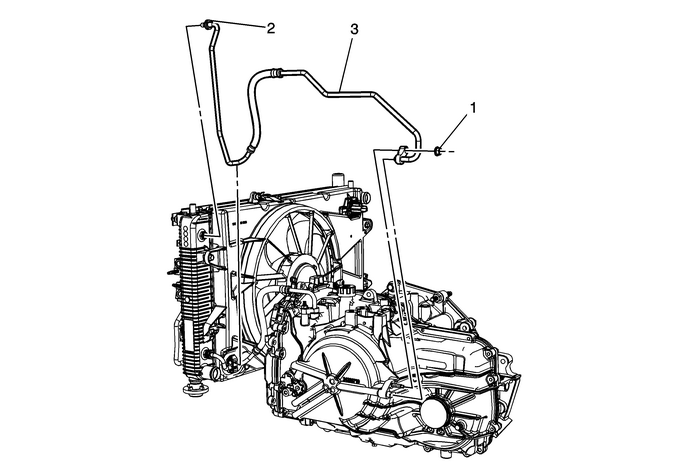

Transmission Fluid Cooler Outlet Pipe Replacement

Callout

Component Name

Preliminary Procedure

Raise the vehicle. Refer toLifting and Jacking the Vehicle.

1

Transmission Fluid Cooler Outlet Pipe Nut

Caution:Refer toFastener Caution.

Tighten

22-Y (16-lb-ft)

2

Transmission Fluid Cooler Outlet Pipe Quick Disconnect

Procedure

Disconnect the transmission line from the radiator. Refer toTransmission Fluid Cooler Hose/Pipe Quick-Connect Fitting Disconnection and Connection.

3

Transmission Fluid Cooler Outlet Pipe

ProcedureInstall new sealing washers.Note the routing of the transmission line to ensure proper installation.Remove the transmission line from the clips securing the line to the transmissionand fan shroud.Inspect the transmission fluid level. Refer toTransmission Fluid Level and Condition Check.
